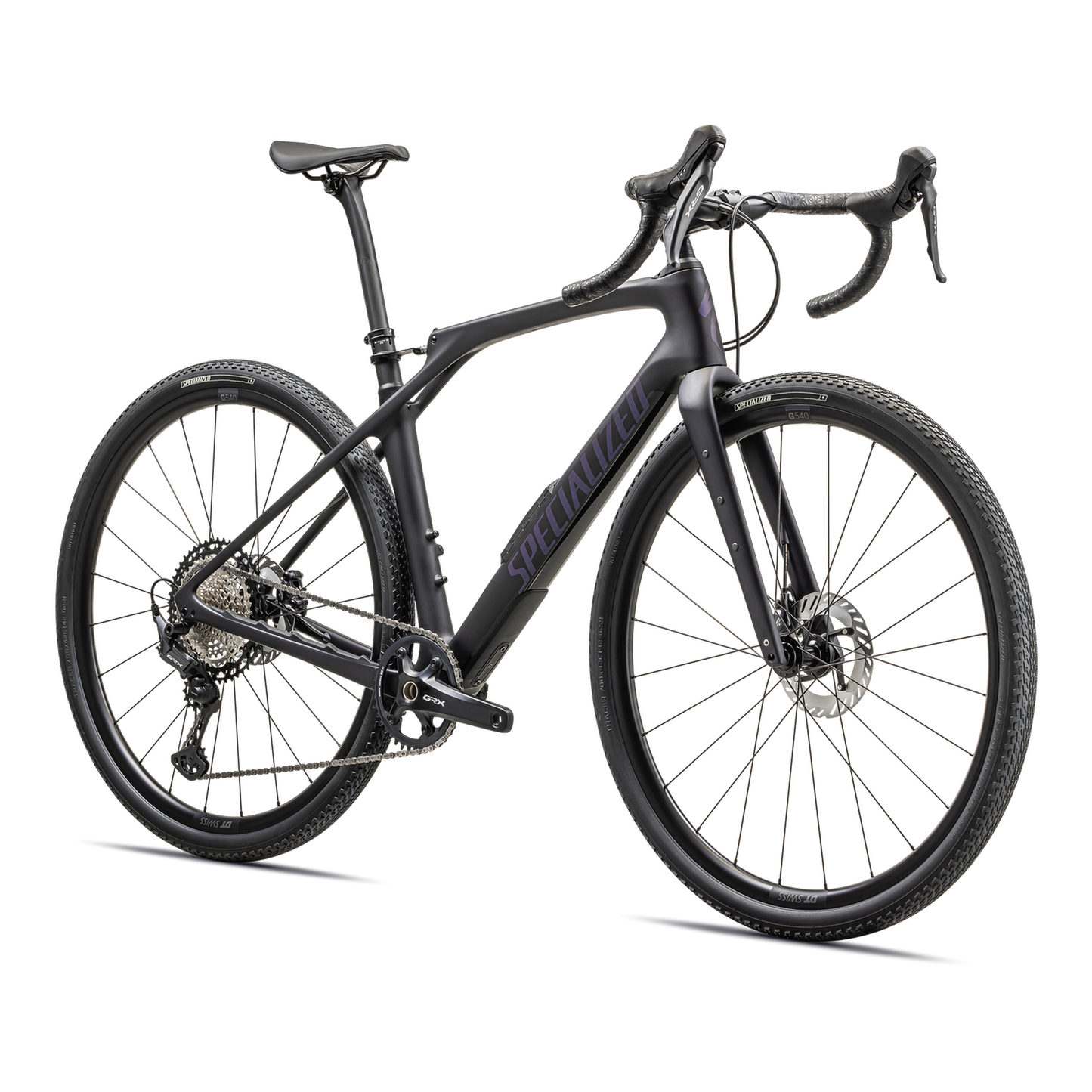

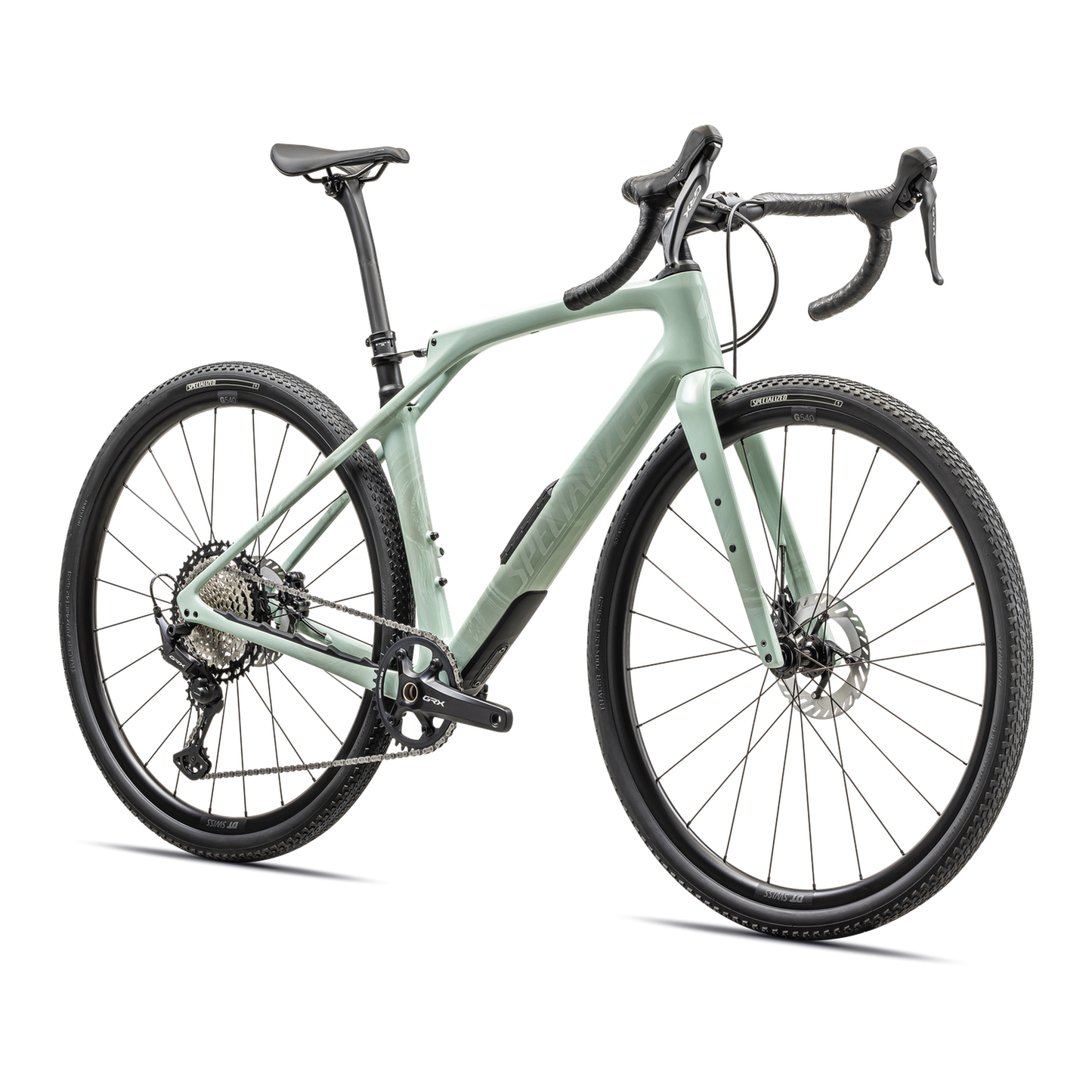

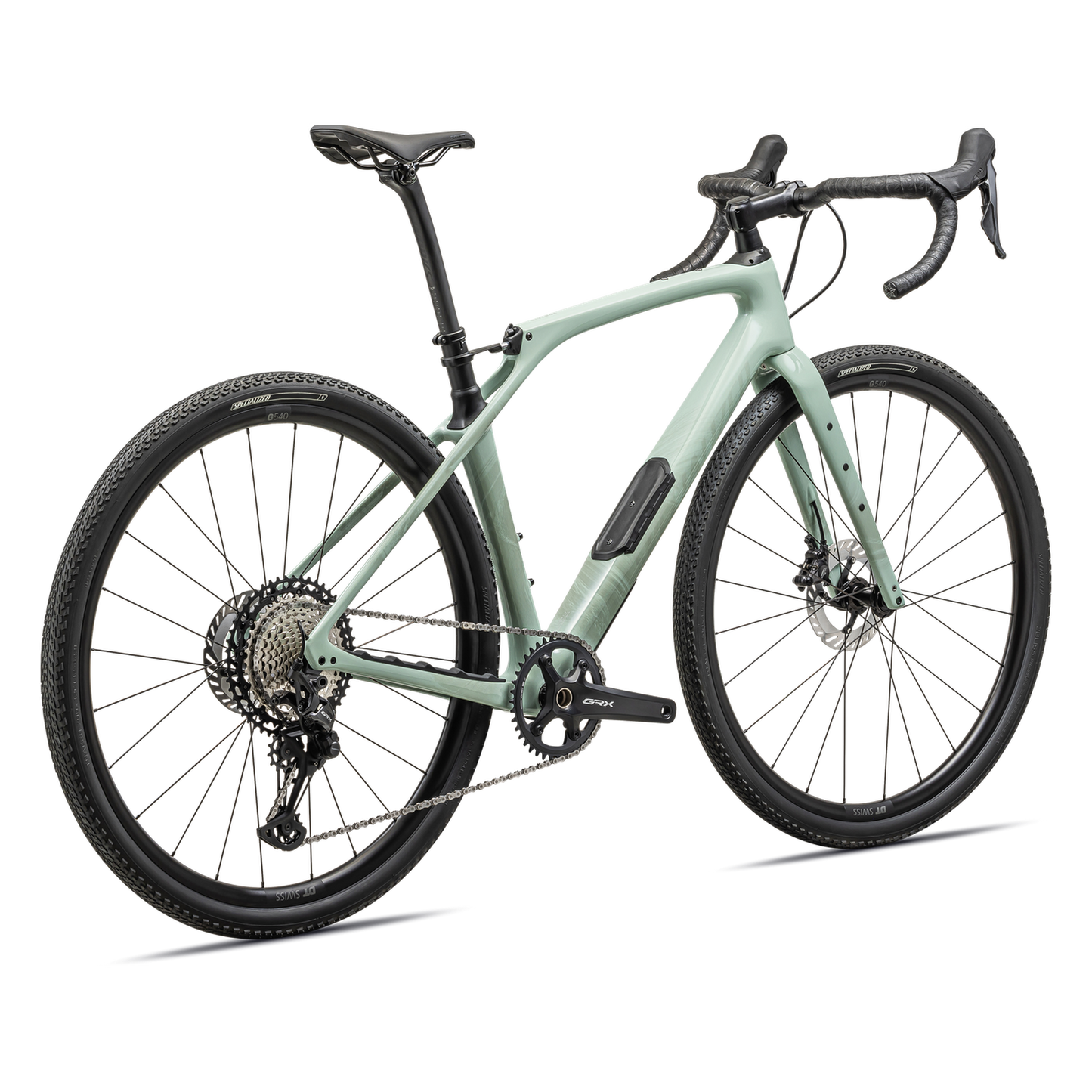

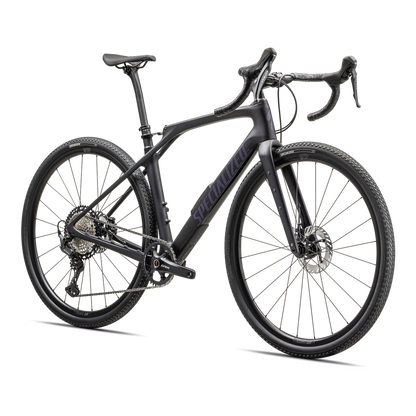

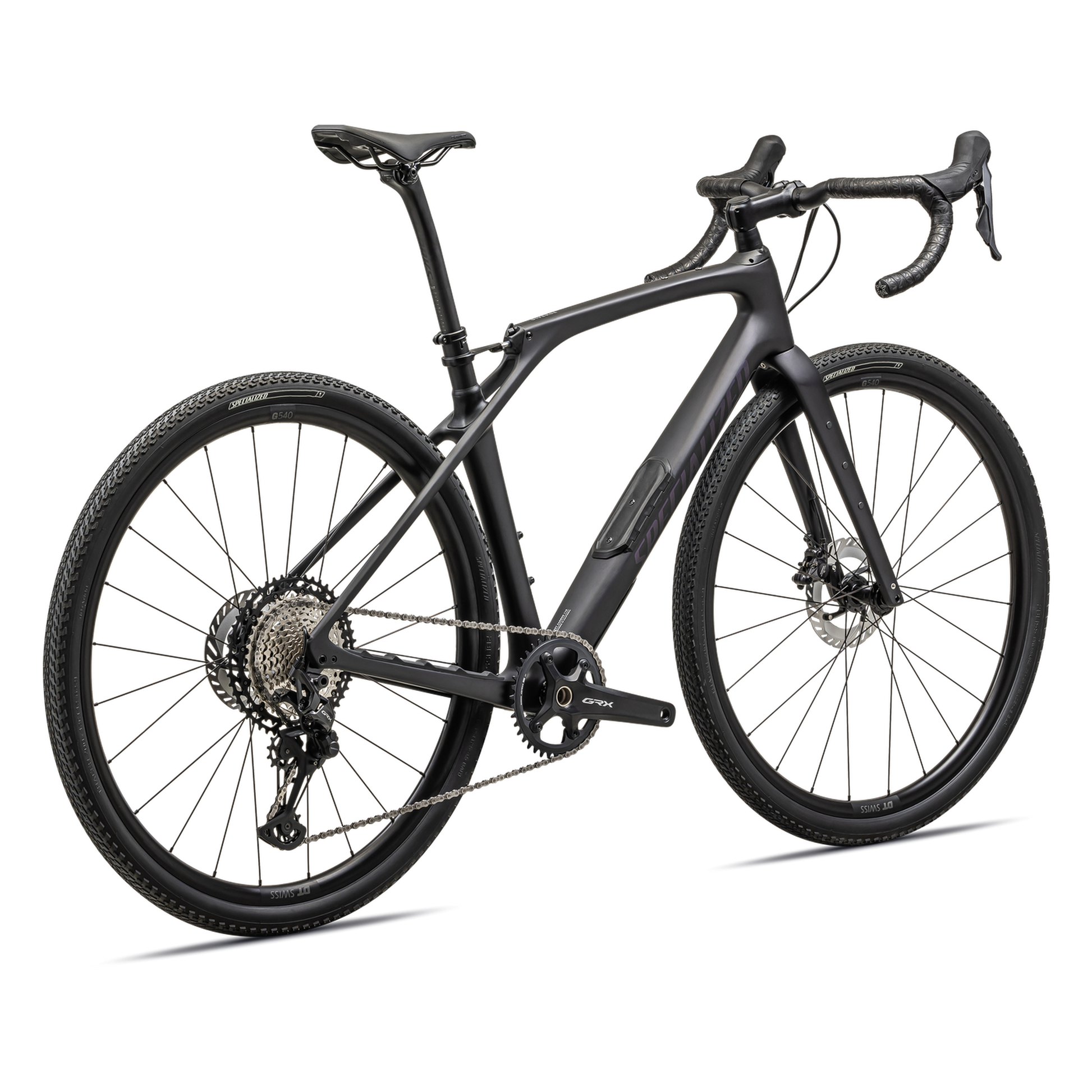

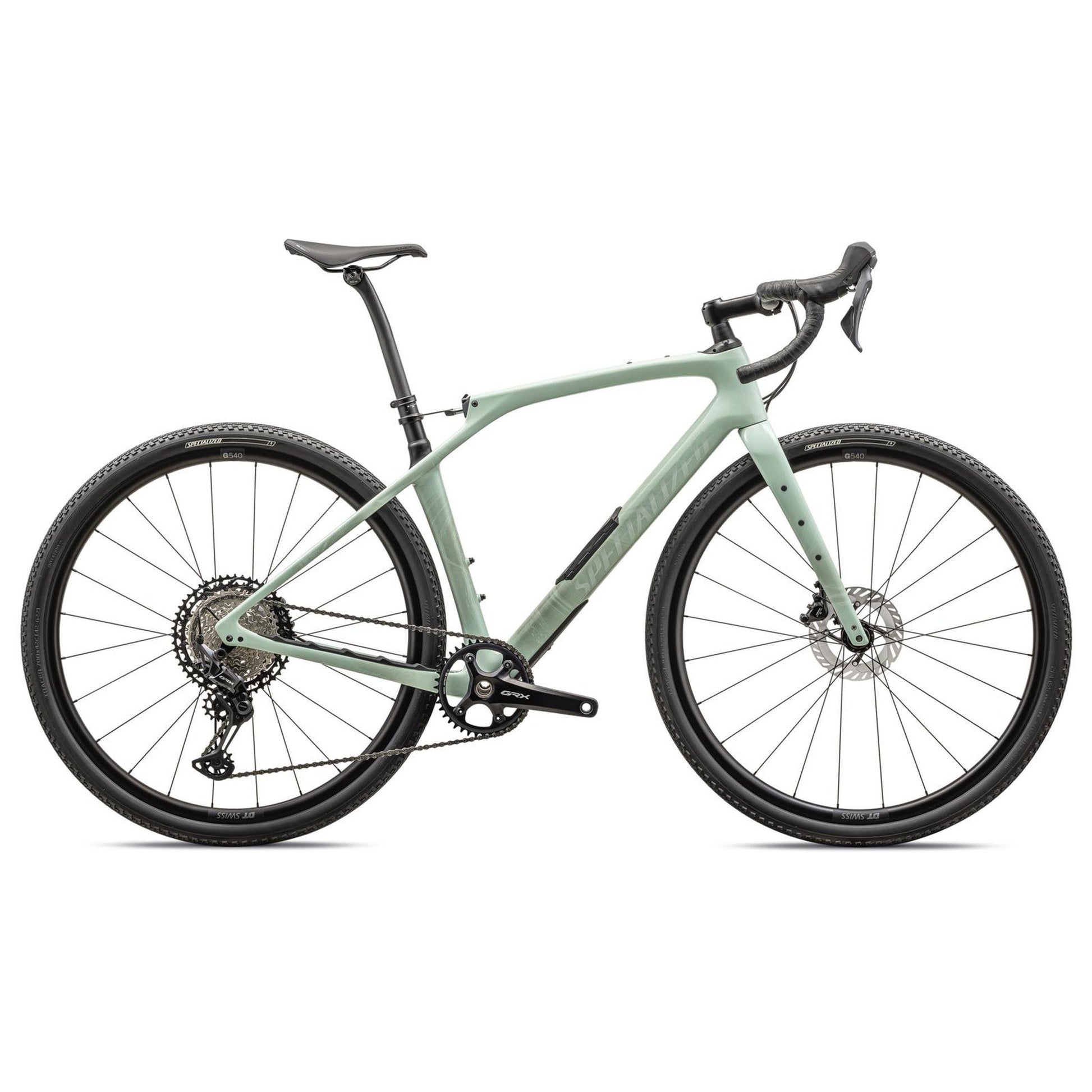

2024 Diverge STR Comp
2024 Diverge STR Comp
Out of stock
Read More
Read More

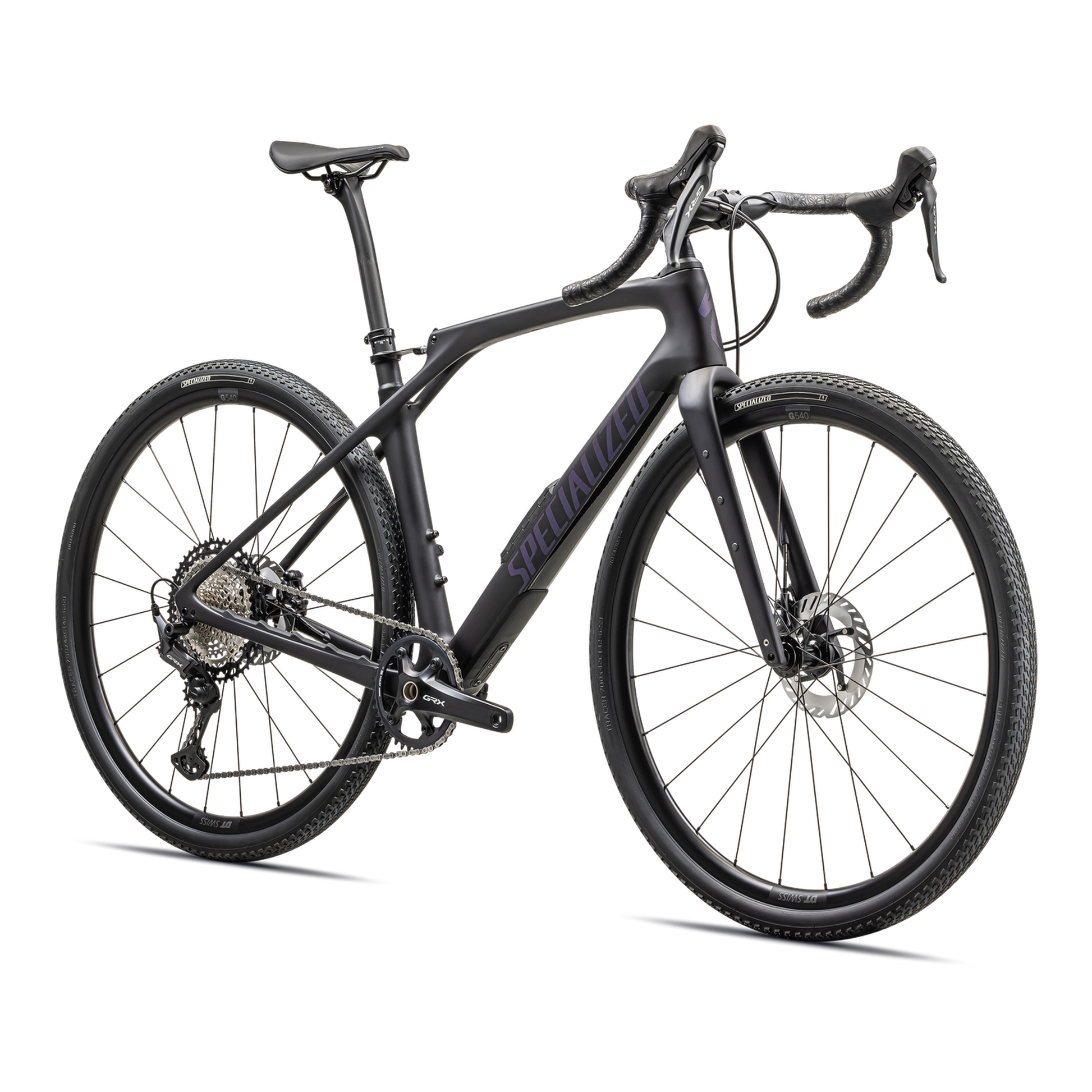

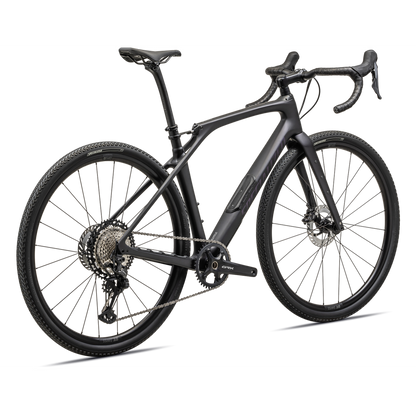

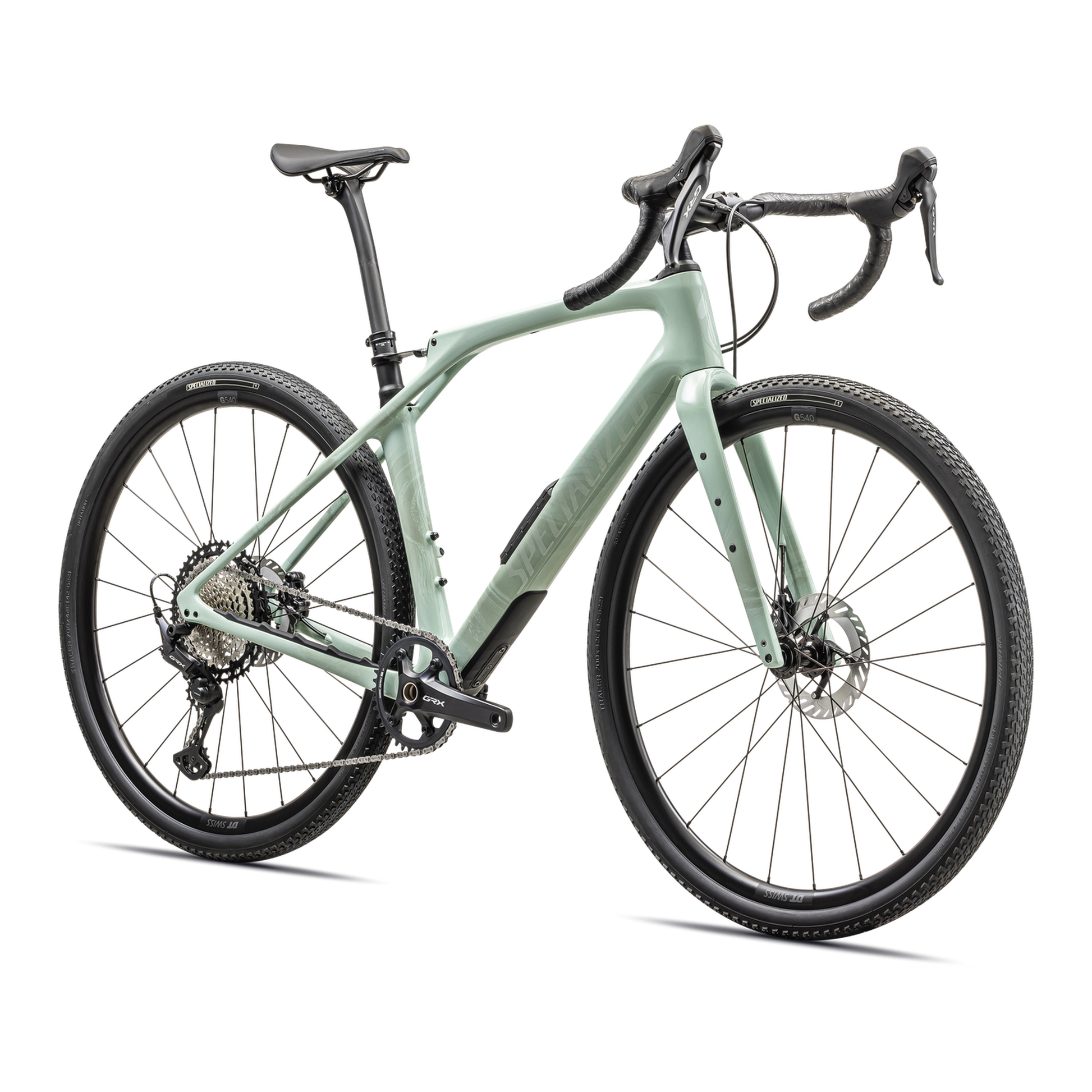

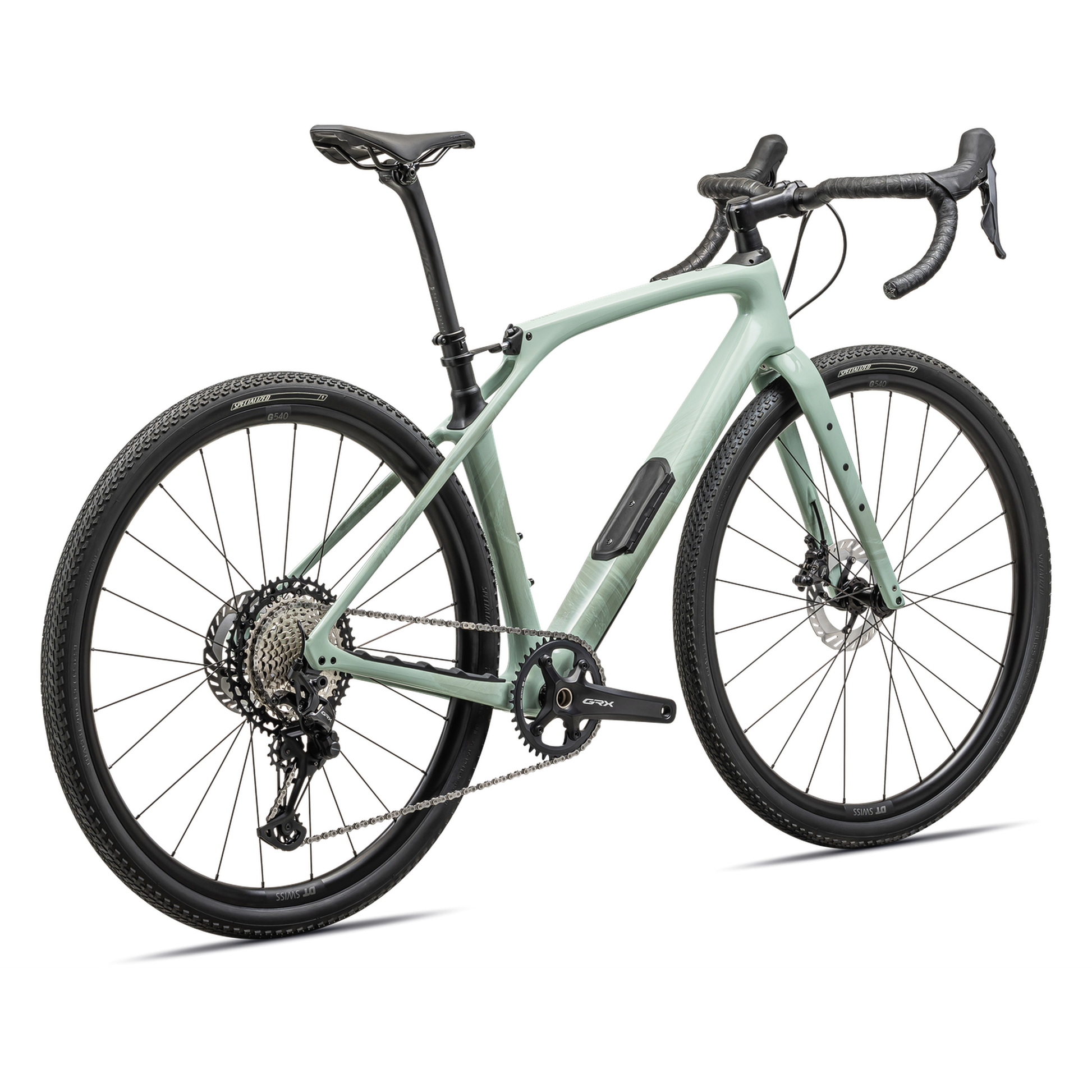

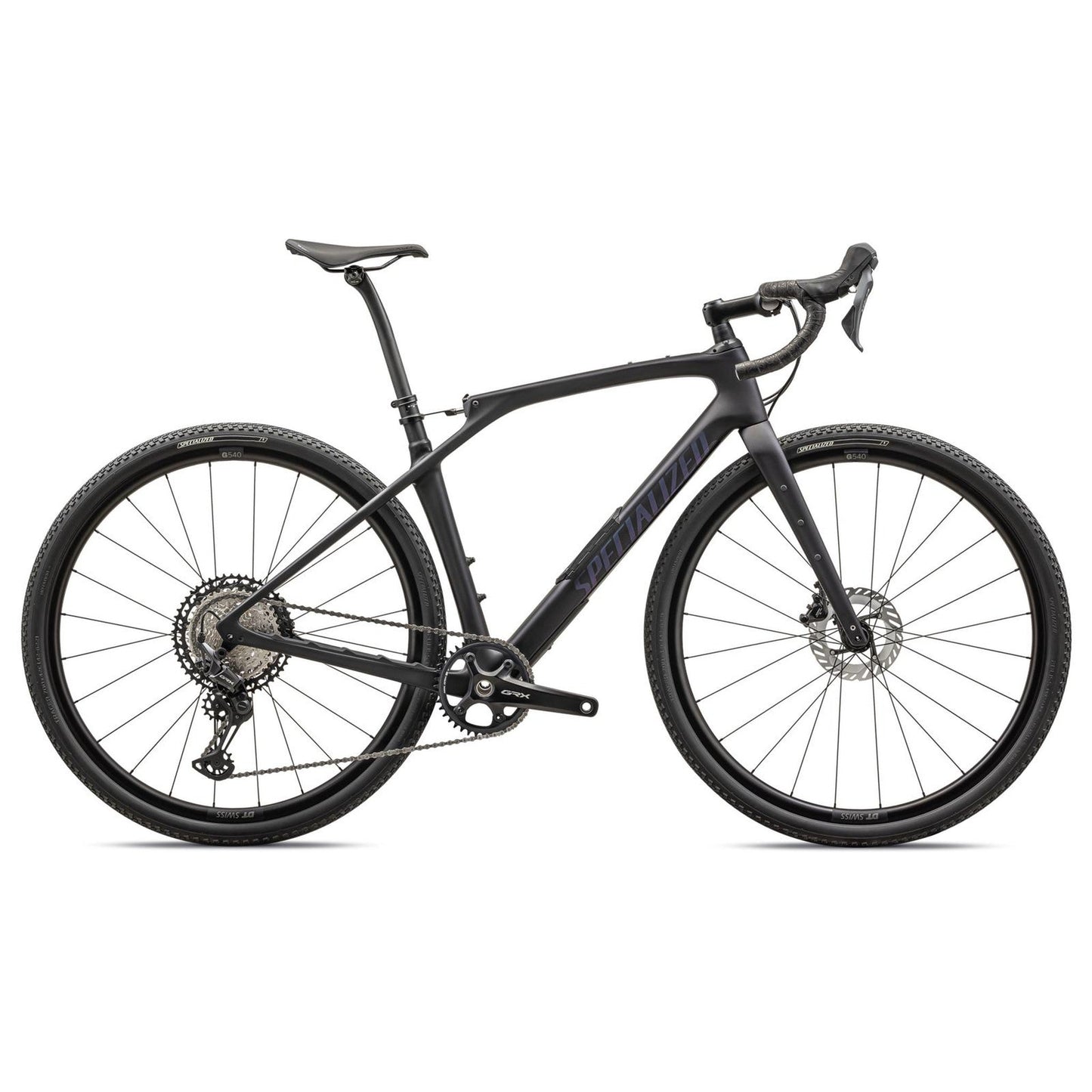

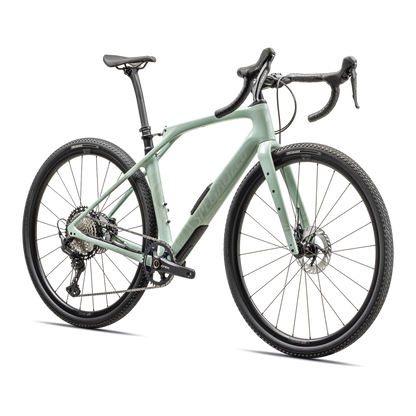

With Future Shock suspension front and rear, the new Diverge STR delivers compliance without compromise. By suspending the rider—instead of the bike—Future Shock technology increases control and efficiency while decreasing fatigue, so you’ll be riding farther and faster over chunkier terrain than you believed possible. And the Diverge STR does this without the weight, sluggish pedal response, and inefficiency of other suspension systems. The Diverge STR Comp starts with our FACT 11r carbon frameset with front and rear Future Shock suspension. It’s built with Shimano's new GRX820 groupset for fast, efficient shifting with a 10-51 cassette to ensure you have the gearing to tackle any ride. The bike rolls on the DT G540 wheels with 42mm Tracer Pro tires. Adventure Gear alloy handlebars, an S-Works carbon seatpost, and Power Sport saddle complete the package making the Diverge STR the most capable Diverge ever.

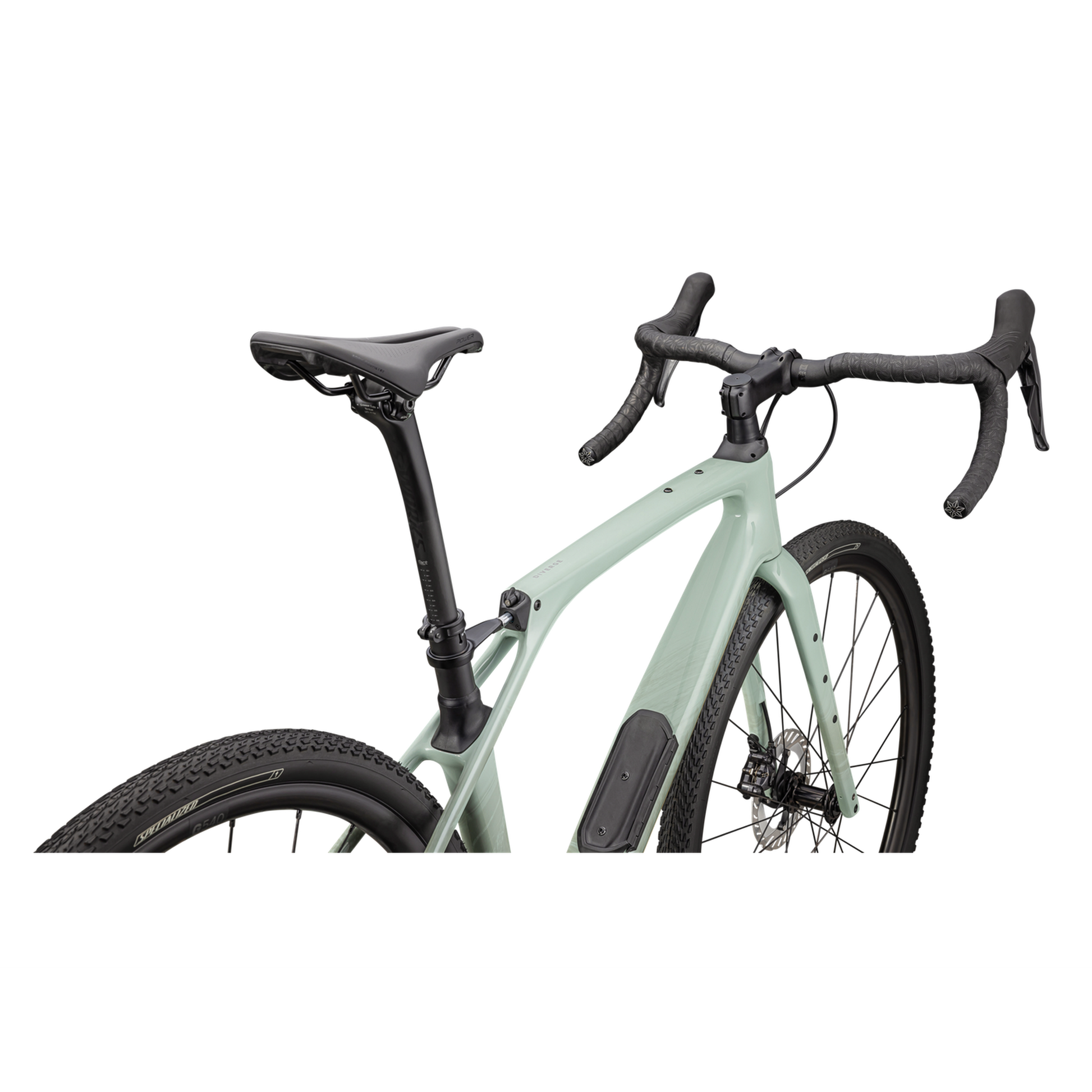

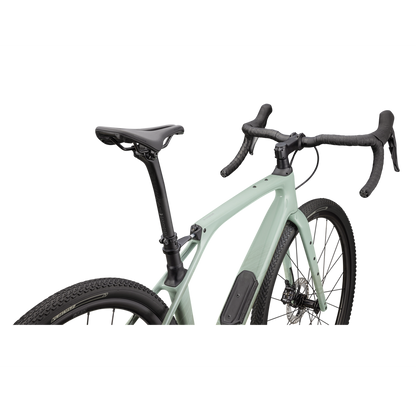

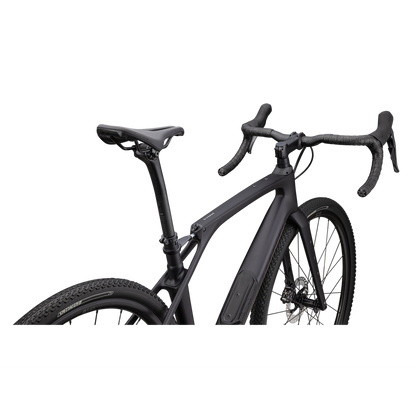

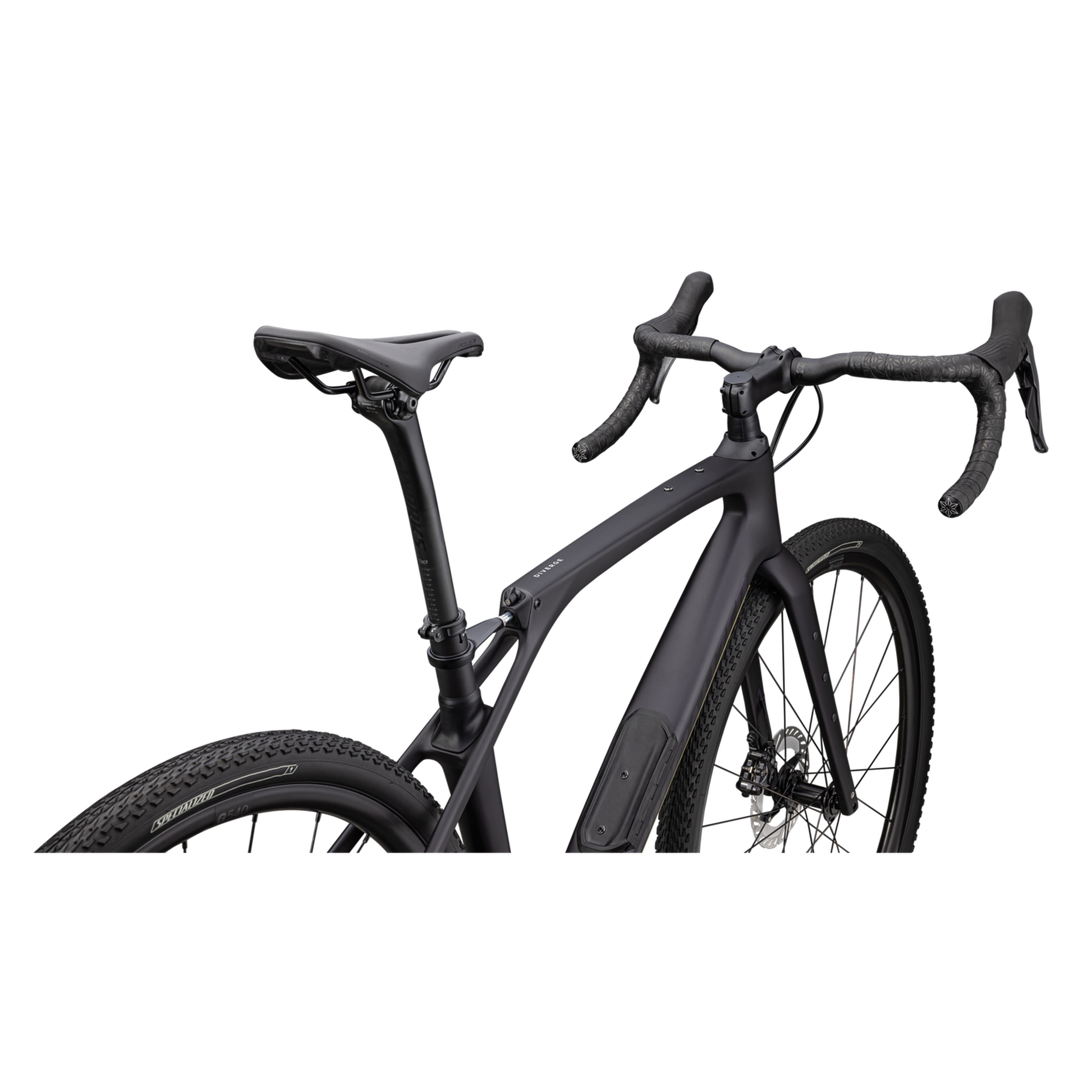

- The new Diverge doesn’t just have gorgeous lines, it has perfect curves too. Future Shock Rear puts 30mm of rear travel in the ideal path to smooth out rough road. Its hydraulic damping controls travel to eliminate “bobbing” under power and ensure big hits never catapult you from the saddle, all without compromising fit or pedaling efficiency.
- By suspending the rider with damped, tunable travel—20mm front/30mm rear—Future Shock Technology absorbs bump forces to boost your control and capability while retaining the efficiency and responsiveness of a rigid frame. Because as far as power transfer goes, it is a rigid frame. Power to the pedals makes the bike jump like a scared cat. You’re efficient, you’re comfortable, you’re in control. Your bike is light, nimble, and responsive.
- Born from decades of innovation and our Smoother is Faster philosophy, Future Shock was created to develop bikes that win on cobblestones, but it’s found its purest expression on gravel. It’s 20mm of adjustable, damped front travel that keeps you in control and on target, all while protecting your hands, arms, and shoulders from the battering.
- More capability means more confidence, more confidence means more rides, more rides mean more fun, and it all starts at the contact patch. Nothing unlocks capability like tire clearance, and we’re feeling generous. 47mm on a 700c wheel and 2.1” on 650B. Diverge STR is the most capable gravel bike we’ve ever made, so it’s the most fun. We did the math.
Share
Technical Specifications
FRAMESET
Frame: Diverge FACT 11r carbon frameset with front and rear Future Shock suspension, SWAT™ Door integration, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
SUSPENSION
Fork: Future Shock 3.2 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
COCKPIT
Saddle: Body Geometry Power Sport, steel rails
Stem: Future Stem, Comp
SeatPost: S-Works FACT carbon 27.2mm, 20mm offset
Seat Binder: Specialized Alloy, 33.3mm

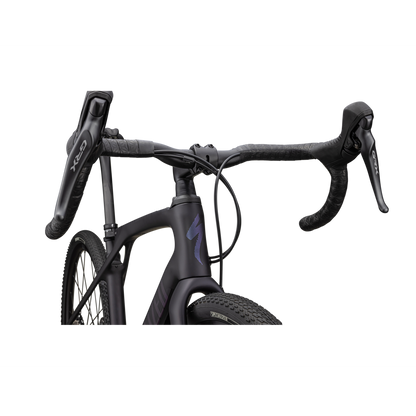

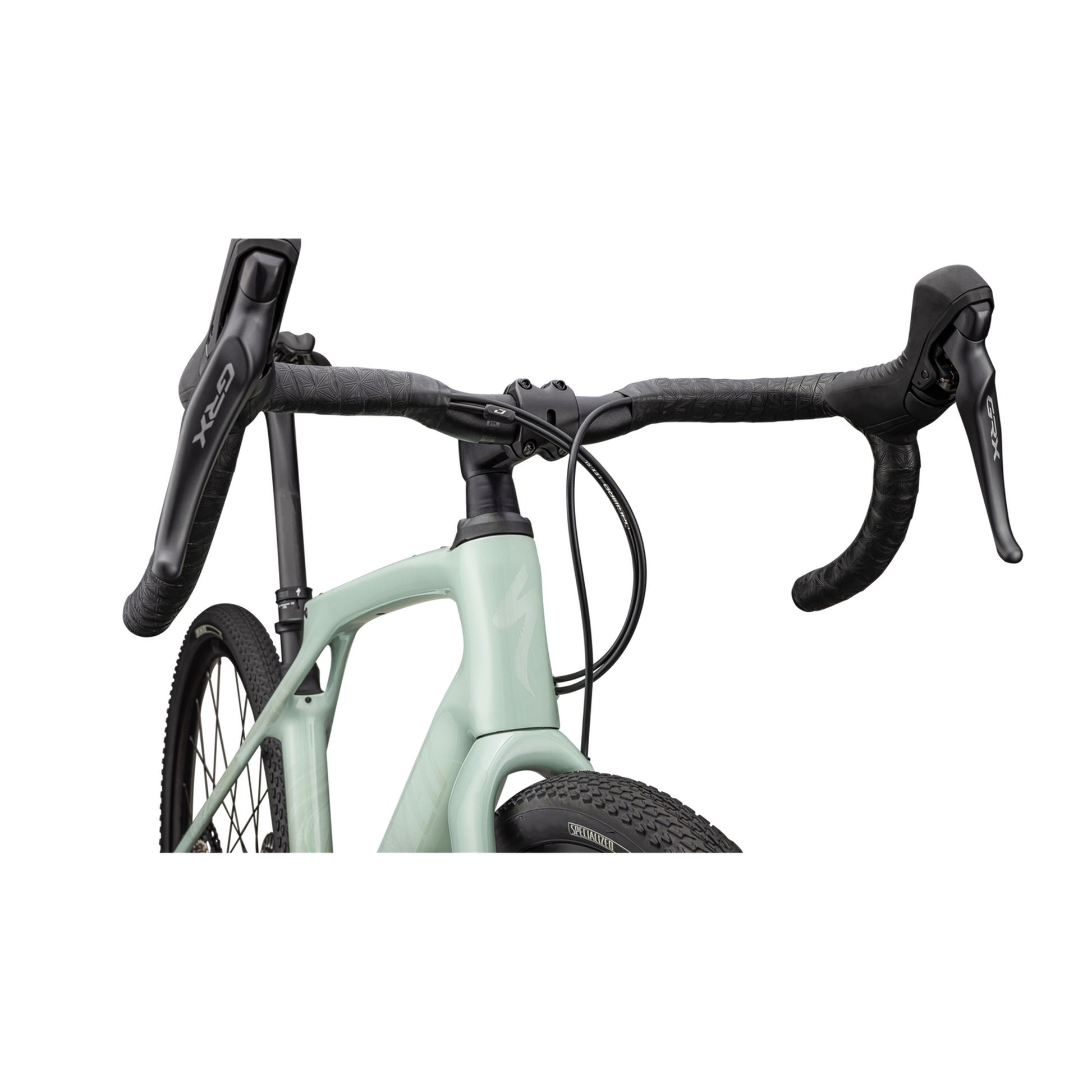

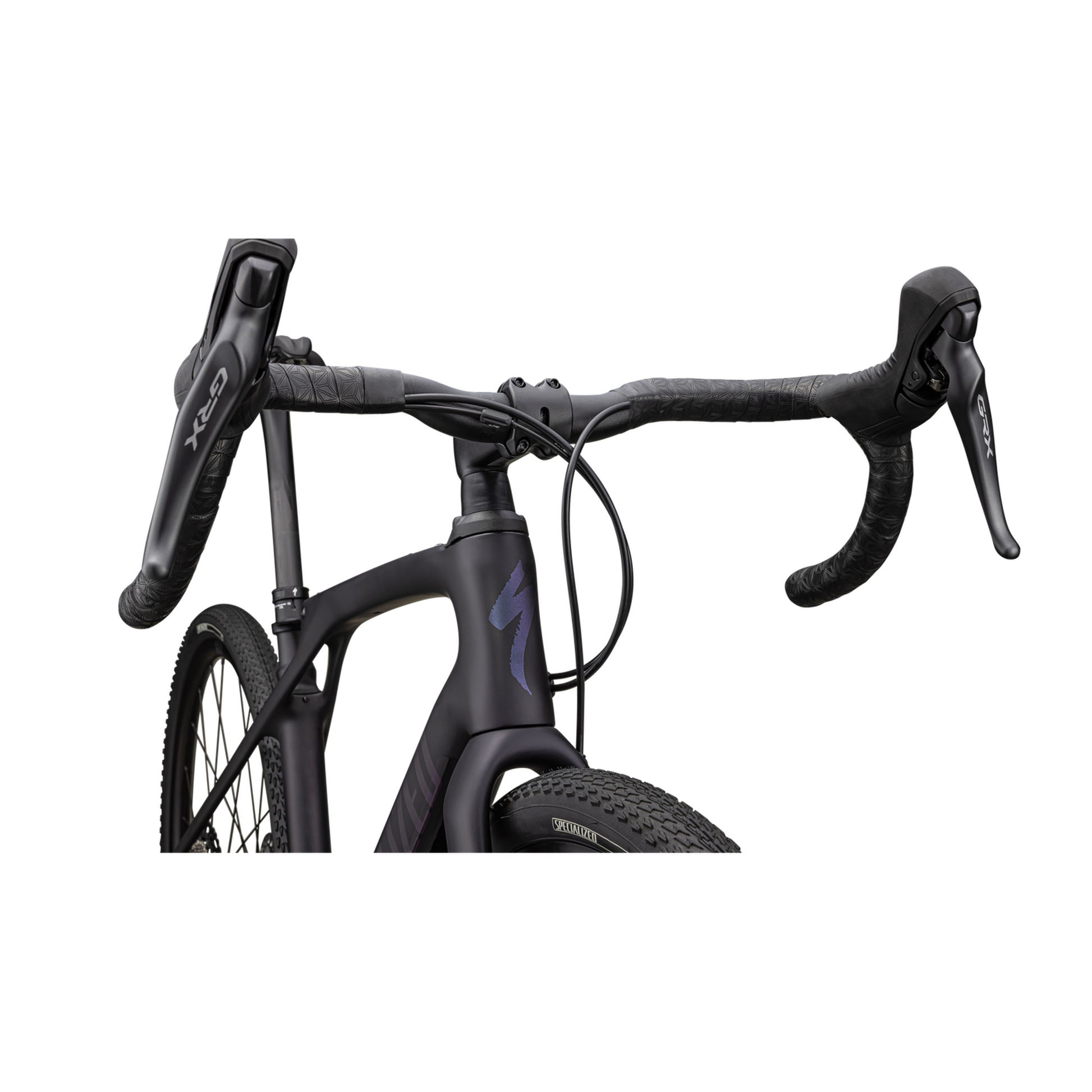

Handlebars: Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Tape: Supacaz Super Sticky Kush
BRAKES
Front Brake: Shimano GRX RX820
Rear Brake: Shimano GRX RX820
DRIVETRAIN
Chainrings: 40T
Shift Levers: Shimano GRX RX820, 1x12-speed
Crankset: Shimano GRX RX820
Rear Derailleur: Shimano GRX RX822-SGS, 12-speed
Cassette: Shimano XT, 12-speed, 10-51t
Bottom Bracket: Shimano Threaded BSA BB
Chain: Shimano XT M8100, 12-speed w/ quick link
WHEELS & TIRES
Front Wheel: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Rear Wheel: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Inner Tubes: 700x28/38mm, 48mm Presta valve
Front Tire: Tracer Pro 2BR, 700x42
Rear Tire: Tracer Pro 2BR, 700x42
ACCESSORIES
SWAT: Integrated SWAT door, internal storage system
WEIGHT
Weight Size: 56
Weight: 9.88kg (21 lb, 12.5 oz)
Geometry
49 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
Stem Length | 60mm | 70mm | 80mm | 90mm | 100mm | 100mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 350mm | 350mm | 350mm | 350mm | 350mm | 350mm |
Stack | 569mm | 576mm | 593mm | 609mm | 633mm | 659mm |
Reach | 365mm | 374mm | 383mm | 392mm | 401mm | 410mm |
Head Tube Length | 100mm | 100mm | 115mm | 130mm | 155mm | 182mm |
Head Tube Angle | 70° | 70.5° | 71.25° | 71.75° | 71.75° | 71.75° |
BB Height | 270mm | 265mm | 265mm | 265mm | 265mm | 265mm |
BB Drop | 80mm | 85mm | 85mm | 85mm | 85mm | 85mm |
Trail | 69mm | 66mm | 61mm | 57mm | 57mm | 57mm |
Fork Length, Full | 390mm | 390mm | 390mm | 390mm | 390mm | 390mm |
Fork Rake/Offset | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
Front Center | 607mm | 612mm | 619mm | 629mm | 645mm | 663mm |
Chainstay Length | 429mm | 429mm | 429mm | 429mm | 429mm | 429mm |
Wheelbase | 1023mm | 1027mm | 1034mm | 1044mm | 1060mm | 1078mm |
Top Tube Length, Horizontal | 527mm | 540mm | 556mm | 570mm | 586mm | 602mm |
Bike Standover Height | 704mm | 730mm | 753mm | 778mm | 804mm | 833mm |
Seat Tube Length | 390mm | 430mm | 470mm | 500mm | 530mm | 560mm |
Seat Tube Angle | 74.5° | 74.25° | 74° | 74° | 74° | 74° |
