SPECIALIZED

S-Works Crux - SRAM RED XPLR

S-Works Crux - SRAM RED XPLR

SKU:91425-0058

Regular price R 230,000.00
Regular price R 230,000.00 Sale price R 230,000.00
SAVE R 0.00 Sold out
Tax included. Shipping calculated at checkout.
Color
Size

Low stock: 1 left

Read More

We made Crux, the lightest gravel bike in the world, even lighter. With the unrivaled capability of massive tire clearance and performance gravel geometry, it’s not just the ultimate expression of gravel performance—it’s your one-way ticket to gravel enlightenment.

With UDH and the all-new SRAM RED XPLR, the S-Works Crux drops another 102 grams. Featuring Roval Terra CLX II wheels, Terra Bars, Alpinist seat post, S-Works Power Saddle with Mirror, and Pathfinder Pro tires, the new S-Works Crux with SRAM RED XPLR is our most premium build.

  • Lightest: 725g S-Works 12r frame. We took the breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
  • Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine at full gas.
  • Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
  • Now equipped with UDH - Universal Derailleur Hanger - and built with the new SRAM RED XPLR, it features a 13-speed 10-46 cassette, power meter, updated lever ergonomics, and brake calipers that reduce brake effort by up to 80%.
View full details

Technical Specifications

Frameset

Frame: S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout



Suspension

Fork: S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc



Brakes

Front Brake: NEW SRAM Red XPLR, Hydraulic Disc

Rear Brake: NEW SRAM Red XPLR, Hydraulic Disc



Drivetrain

Shift Levers: SRAM Red AXS

Rear Derailleur: NEW SRAM Red XPLR, 13sp

Cassette: NEW SRAM Red XPLR, 13sp, 10-46t

Chain: NEW SRAM Red XPLR, 13sp

Crankset: SRAM Red AXS Power Meter

Chainrings: 40T

Bottom Bracket: SRAM DUB BSA



Wheels & Tires

Front Wheel: Roval Terra CLX II, 25mm internal width, Tubeless ready, 32mm depth, 21h, Roval AFD1, Centerlock, DT Swiss Aerolite spokes

Rear Wheel: Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval AFD2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes

Front Tire: Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c

Rear Tire: Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c

Inner Tubes: 700x28/38mm, 48mm Presta valve



Cockpit

Tape: Supacaz Super Sticky Kush

Stem: S-Works SL, alloy, titanium bolts, 6-degree rise

Handlebars: Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare

Saddle: S-Works Power with Mirror

SeatPost: Roval Alpinist Carbon Seatpost

Seat Binder: Specialized Alloy, 30.0mm, titanium bolt



Product Details

Product ID: 223480



Weight

Weight: 6.94 kg (15 lb, 4.8 oz)

Weight Size: 56

Geometry



495254565861
Crank Length165mm170mm172.5mm172.5mm175mm175mm
Handlebar Width380mm400mm420mm420mm440mm440mm
Stem Length70mm80mm90mm100mm110mm110mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length300mm300mm300mm360mm360mm360mm
Stack530mm547mm560mm578mm598mm621mm
Reach375mm382mm388mm397mm405mm415mm
Head Tube Length100mm115mm130mm147mm167mm190mm
Head Tube Angle70.5°71.25°71.5°72°72.25°72.5°
BB Height284mm284mm286mm286mm286mm286mm
BB Drop74mm74mm72mm72mm72mm72mm
Trail74mm69mm67mm64mm62mm60mm
Fork Length, Full401mm401mm401mm401mm401mm401mm
Fork Rake/Offset50mm50mm50mm50mm50mm50mm
Front Center594mm600mm608mm618mm630mm644mm
Chainstay Length425mm425mm425mm425mm425mm425mm
Wheelbase1008mm1014mm1023mm1033mm1045mm1059mm
Top Tube Length, Horizontal512mm539mm549mm568mm582mm599mm
Bike Standover Height749mm772mm794mm816mm841mm866mm
Seat Tube Length466mm496mm521mm546mm576mm606mm
Seat Tube Angle75.5°74°74°73.5°73.5°73.5°

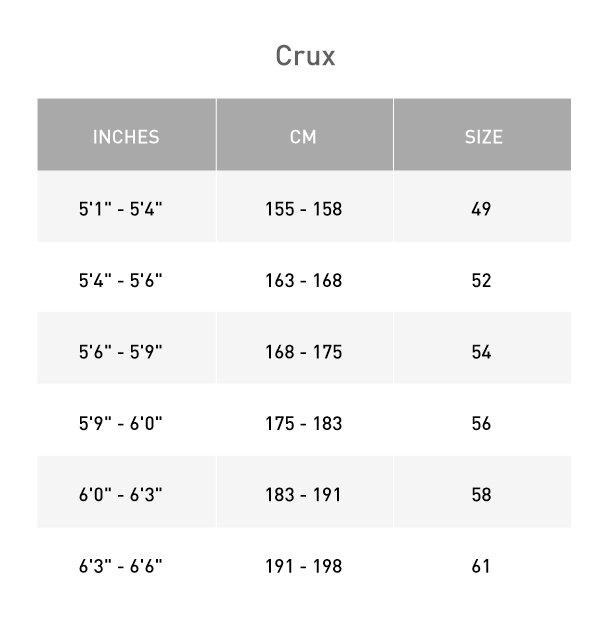

Size Guide

Size Chart
