SPECIALIZED

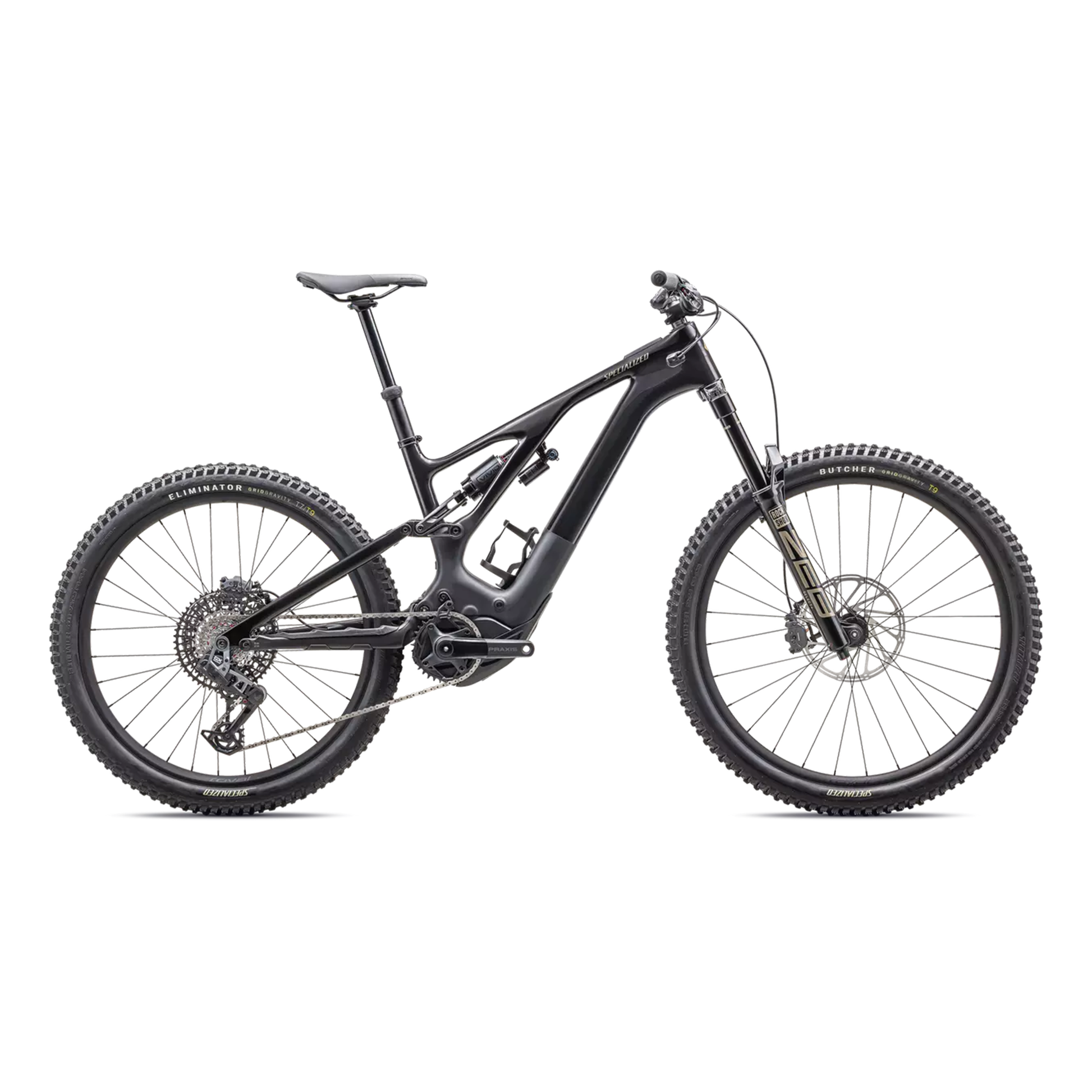

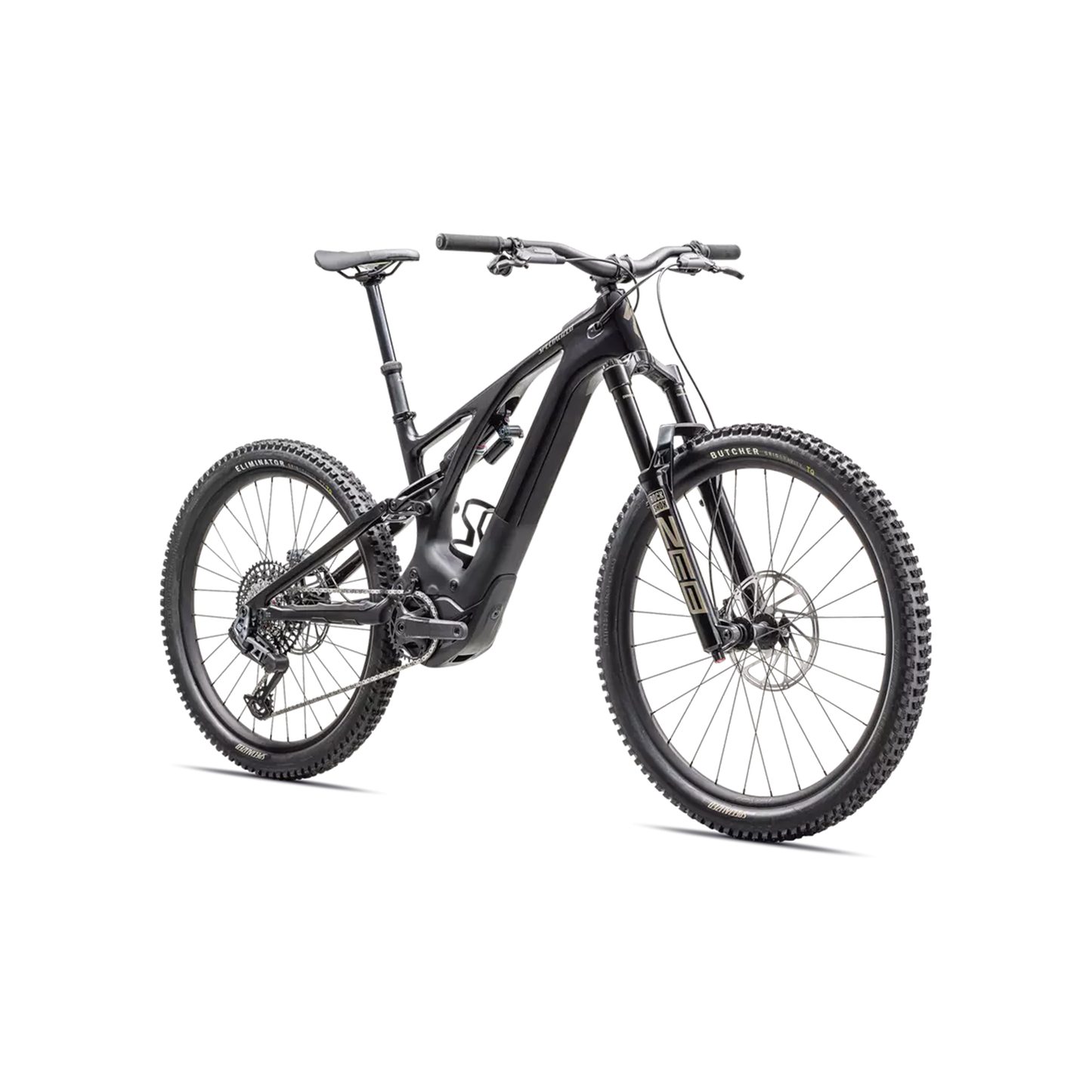

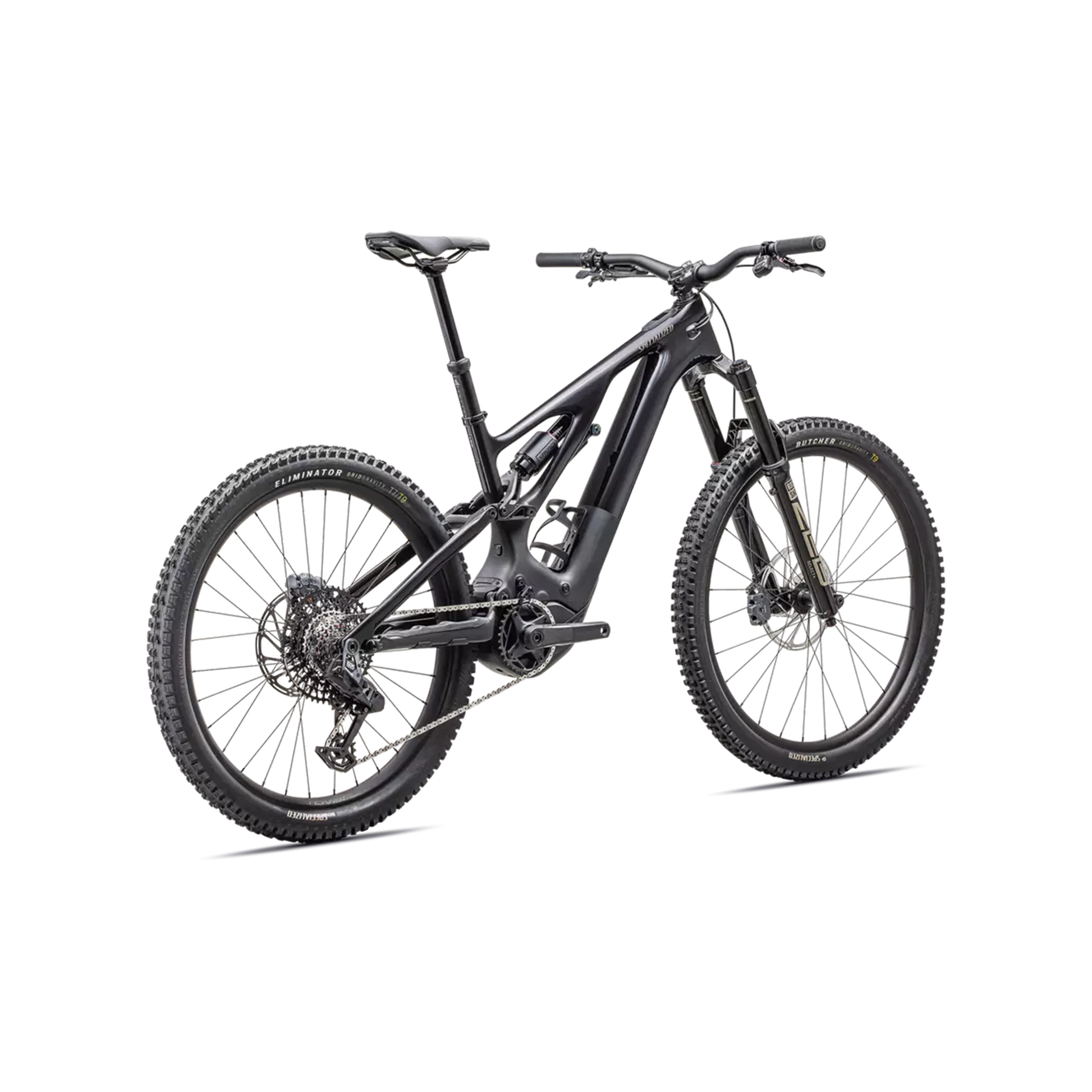

Turbo Levo Expert

Turbo Levo Expert

95225-3004

R 180,000.00
R 180,000.00 R 180,000.00
SAVE R 0.00 Sold out
Tax included. Shipping calculated at checkout.
Color
Size

Low stock: 1 left

Read More

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and MasterMind Turbo Control Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

Here’re where the gloves come off—the Levo Expert brings it with SRAM’s new AXS GX Eagle Transmission 12-speed drivetrain, dialed-in Rockshox Select Plus suspension, and a high-performing Roval HD Traverse wheelset.

  • The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
  • The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
  • A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
  • Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style andany terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.
  • Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
View full details

Technical Specifications

E-bike

Wiring Harness: CA,PA TRAIL FSR F1,BTRY,MOTOR, UL

Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Motor: Specialized 2.2 Custom RX Trail Tuned Motor

Battery: Specialized M3-700, Integrated battery, 700Wh

UI/Remote: Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote



Frameset

Seat Binder: Alloy, 38.6mm

Frame: FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot



Suspension

Fork: Rockshox Zeb Select Plus, 29", S2-S6: 160mm, S1: 150mm

Rear Shock: S2-S6: Rockshox Vivid Select Plus, 210x55mm, S1: Rockshox Deluxe Select Plus, 210x52.5mm



Brakes

Front Brake: SRAM Maven Bronze, 220mm rotor, metallic pads

Rear Brake: SRAM Maven Bronze, 200mm rotor, metallic pads



Drivetrain

Crankset: Praxis forged M30, custom offset, 160mm

Chain: SRAM GX Eagle Transmission Flattop Chain

Chainrings: SRAM Eagle Transmission 34t Steel, 104BCD

Cassette: SRAM GX Eagle Transmission Cassette, 12spd, 10-52t

Shift Levers: SRAM AXS POD Controller

Rear Derailleur: SRAM GX Eagle Transmission Derailleur



Wheels & tires

Front Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire: Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 27.5x2.3"

Inner Tubes: Standard 40mm PV 29/27.5x1.75-2.4

Front Wheel: WH-TRAVERSE HD ALLOY 370 29 27.5 28H 32H;FS

Rear Wheel: WH-TRAVERSE HD ALLOY 370 29 27.5 28H 32H;FS



Cockpit

Stem: Alloy Trail Stem, 35mm bar bore

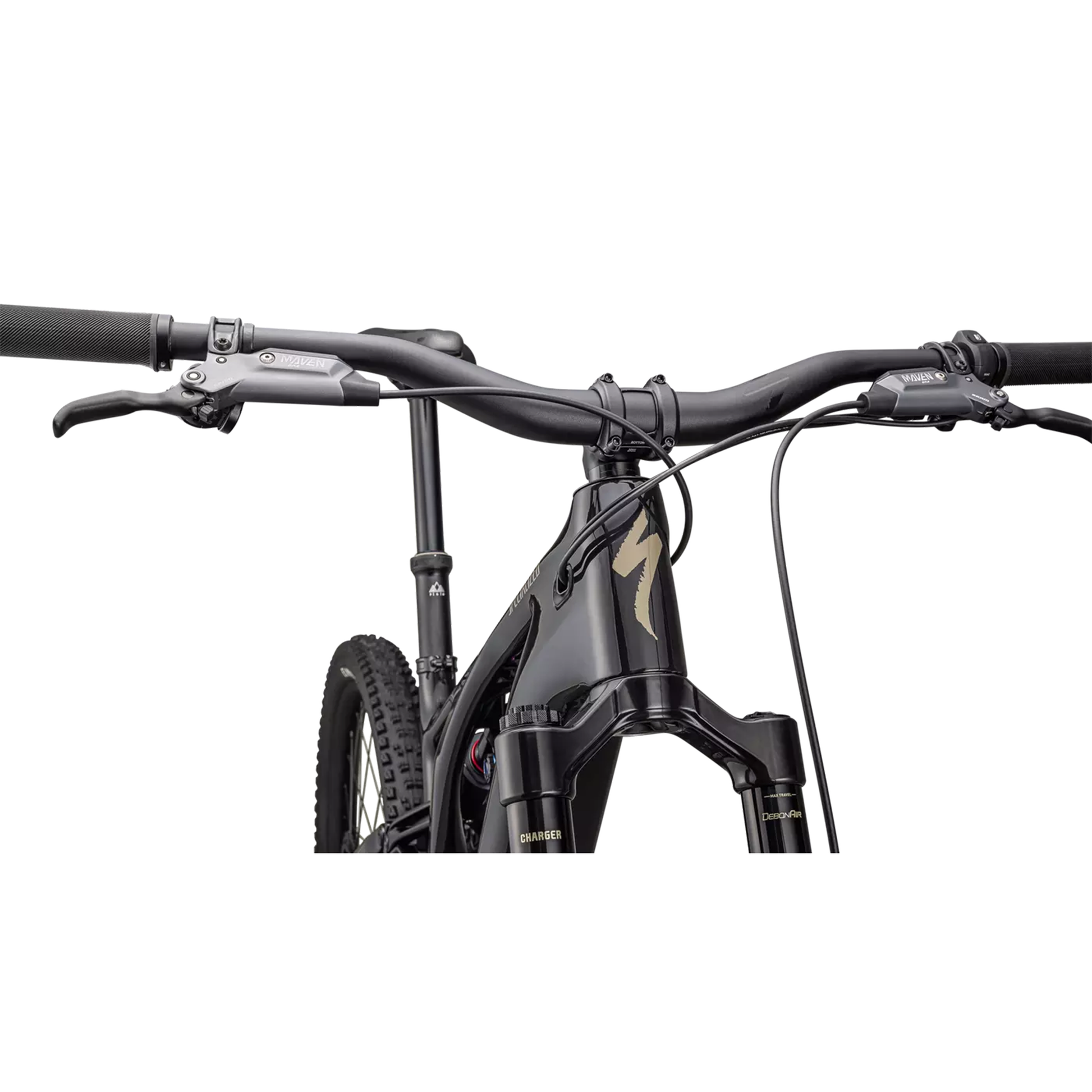

Handlebars: 6061 mtn bars, 35mm diameter, 8 degree back sweep, 6 degrees up sweep, 800mm width. S1/S2: 30mm rise, S3-S6: 40mm rise

Saddle: Specialized Bridge Comp with Mimic

SeatPost: PNW Loam Dropper, S1: 125mm, S2: 150mm, S3: 170mm, S4-S6: 200mm

Grips: Specialized Trail Grips



Accessories

SWAT: SWAT CC steerer tube integrated tool with chain tool and link



Geometry


 		S1S2S3S4S5S6
Crank Length160mm160mm160mm160mm160mm160mm
Handlebar Width780mm780mm780mm780mm780mm780mm
Stem Length40mm40mm40mm40mm50mm50mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length100mm125mm150mm170mm170mm200mm
Stack605mm617mm626mm635mm644mm653mm
Reach412mm432mm452mm477mm502mm532mm
Headtube Length105mm105mm115mm125mm135mm145mm
Headtube Angle64.5°64.5°64.5°64.5°64.5°64.5°
BB Height352mm350mm350mm350mm350mm350mm
BB Drop25mm27mm27mm27mm27mm27mm
Trail130mm130mm130mm130mm130mm130mm
Fork Length (full)557mm567mm567mm567mm567mm567mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center738mm760mm784mm814mm843mm878mm
Chainstay Length442mm442mm442mm442mm442mm442mm
Wheelbase1179mm1200mm1225mm1255mm1284mm1318mm
Bike Standover Height752mm776mm783mm787mm788mm790mm
Seat Tube Length380mm390mm405mm425mm445mm465mm
Seat Tube Angle78°77.2°76.7°76.2°76.2°76.2°
Max Seatpost Insertion210mm220mm240mm255mm275mm295mm
Min Seatpost Insertion80mm80mm80mm80mm80mm80mm
