SPECIALIZED

Crux 5 Expert

SKU:91427-3049

R 140,000.00

~~R 140,000.00~~ R 140,000.00

Sold out

Taxes included. Shipping calculated at checkout.

Size 49 52 54 56 58 61

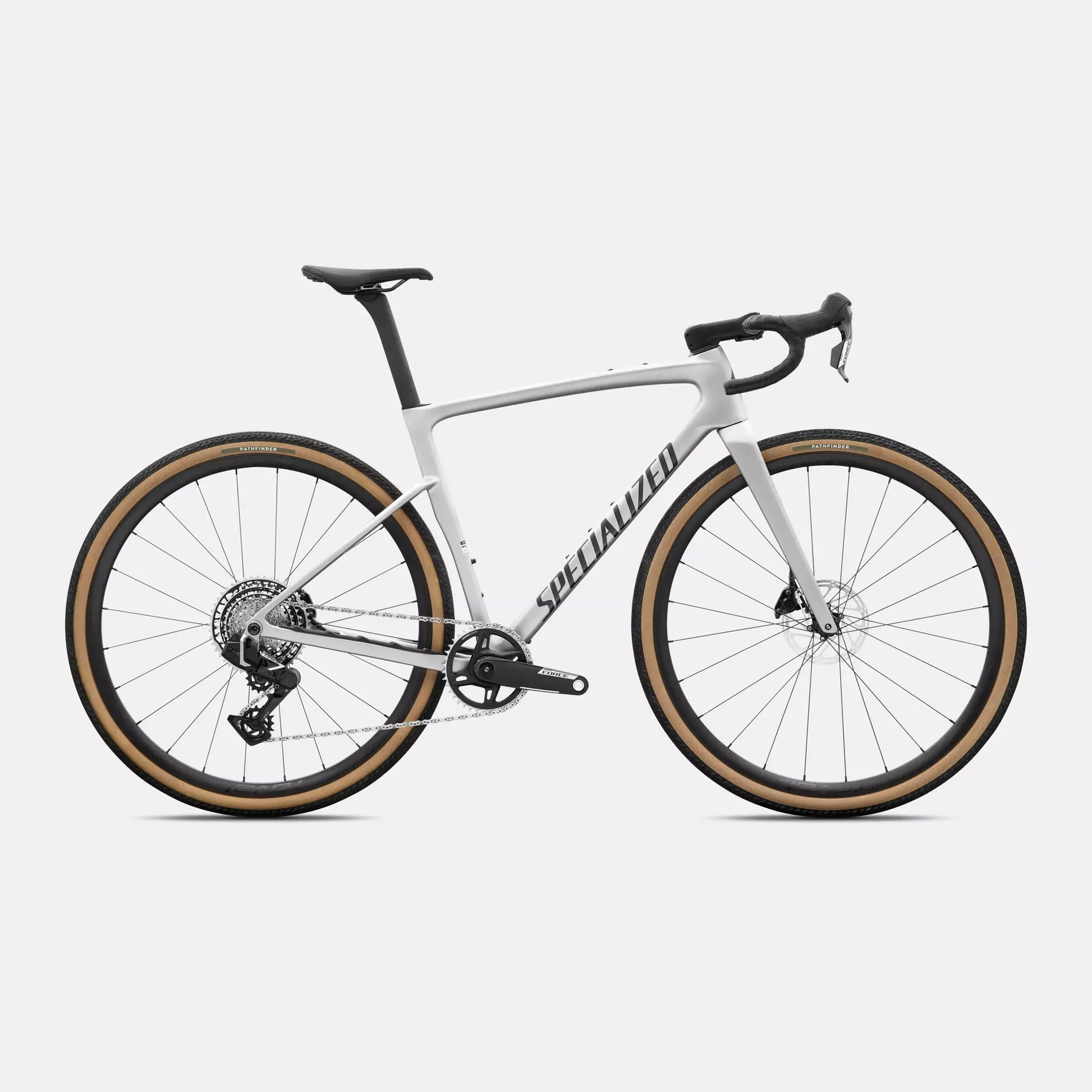

Color: Shadow Silver

Quantity

Out of stock

Eat My Dust

The Crux 5 was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

View full details

Technical Specifications

Frameset

Frame: Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Suspension

Fork: S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Brakes

Front Brake: SRAM Force E1, hydraulic disc

Rear Brake: SRAM Force E1, hydraulic disc

Drivetrain

Bottom Bracket: SRAM DUB BSA 68 Wide

Rear Derailleur: SRAM Force AXS E1 XPLR, 13-speed

Shift Levers: SRAM Force AXS E1, hydraulic disc

Chain: SRAM Force E1

Cassette: SRAM Force E1 XPLR, 13-speed, 10-46t

Crankset: SRAM Force E1 XPLR, DUB Wide, 40t

Wheels & Tires

Front Wheel: Roval Terra C III, 27mm inner width carbon rim, tubeless ready, 25.5mm depth, DT 370 hub, 24h, Sapim D-Light spokes

Rear Wheel: Roval Terra C III, 27mm inner width carbon rim, tubeless ready, 25.5mm depth, DT 370 hub, 24h, Sapim D-Light spokes

Front Tire: Pathfinder 700x45, Tubeless Ready

Rear Tire: Pathfinder 700x45, Tubeless Ready

Inner Tubes: 700x32-50mm, 40mm Presta valve

Cockpit

Saddle: Body Geometry Power Expert, hollow Ti rails

Seatpost: S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset

Stem: Roval Rapide, alloy, 4 bolt, -6 degrees

Handlebars: Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare

Tape: Supacaz Super Sticky Kush

Seat Binder: Integrated Wedge

Product details

Product ID: 294830

Weight

Weight: 8.22 kg (18 lb, 2.0 oz)

Weight Size: 56

Geometry

	49	52	54	56	58	61
Crank Length	165	165	170	170	172.5	172.5
Handlebar Width	380	380	400	400	420	420
Stem Length	70	80	90	100	100	100
Saddle Width	155	155	143	143	143	143
Seatpost Length	300	300	380	380	380	380
Stack	530	547	560	578	598	621
Reach	375	382	388	400	412	425
Head Tube Length	95	110	125	142	163	188
Head Tube Angle	70.5	70.75	71	71.5	71.5	71.5
BB Height	278	278	280	280	280	280
BB Drop	80	80	78	78	78	78
Trail	72	71	69	66	66	66
Fork Length, Full	401	401	401	401	401	401
Fork Rake/Offset	51	51	51	51	51	51
Front Center	594	604	613	626	644	665
Chainstay Length	425	425	425	425	425	425
Wheelbase	1008	1016	1026	1039	1057	1078
Top Tube Length, Horizontal	512	534	543	566	583	603
Bike Standover Height	753	766	781	803	823	849
Seat Tube Length	445	456	473	497	515	545
Seat Tube Angle	75.5	74.5	74.5	74	74	74

Size Guide

Height (cm)	Size
155-158	49
163-168	52
168-175	54
175-183	56
183-191	58
191-198	61
