SPECIALIZED

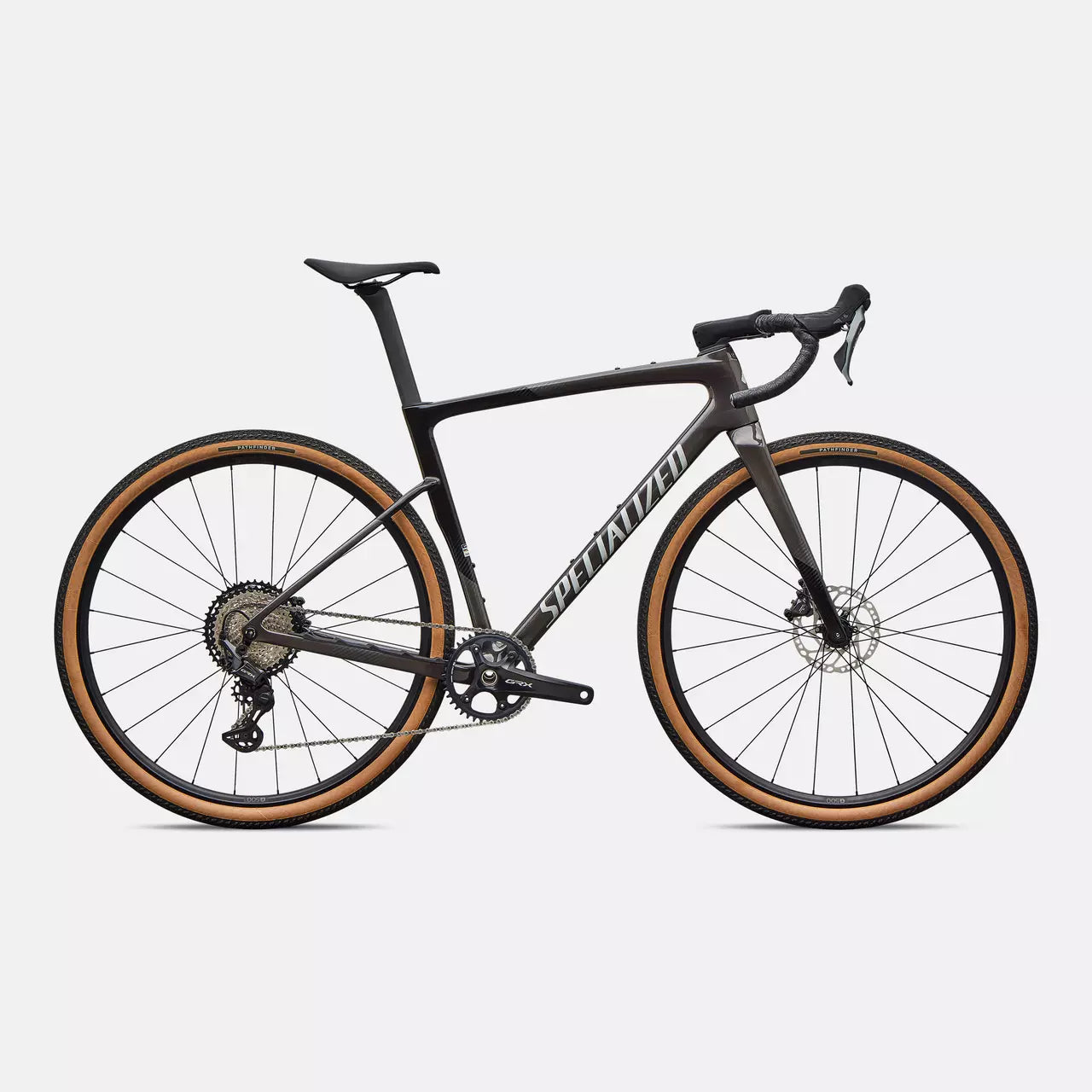

Crux 5 Sport - Shimano GRX 800

Crux 5 Sport - Shimano GRX 800

91427-6149

R 80,000.00
R 80,000.00 R 80,000.00
Sold out
Taxes included. Shipping calculated at checkout.
Size
Colour: Silver Pearl Smoke

Out of stock

Eat My Dust

The Crux 5 was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated for real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

View full details

Technical Specifications

Frameset

Frame: Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout



Suspension

Fork: S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc



Brakes

Front Brake: Shimano GRX BR-RX820

Rear Brake: Shimano GRX BR-RX820



Drivetrain

Shift Levers: Shimano GRX ST-RX820

Rear Derailleur: Shimano GRX RD-RX822-GS, 12-speed

Cassette: Shimano XT CS-M8100, 12-speed, 10-45t

Chain: Shimano XT CN-M8100, 12-speed

Crankset: Shimano GRX FC-RX820, 40t

Bottom Bracket: Shimano Threaded BSA BB



Wheels & Tires

Front Tire: Pathfinder 700x45, Tubeless Ready

Front Wheel: DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples

Rear Tire: Pathfinder 700x45, Tubeless Ready

Rear Wheel: DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples

Inner Tubes: 700x32-50mm, 40mm Presta valve



Cockpit

Stem: Roval Rapide, alloy, 4 bolt, -6 degrees

Handlebars: Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare

Tape: Supacaz Super Sticky Kush

Saddle: Body Geometry Power Sport, steel rails

Seatpost: S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset

Seat Binder: Integrated Wedge



Product Details

Product ID: 312531



Weight

Weight: 8.94 kg

Weight Size: 56

Geometry

 495254565861
Crank Length170mm170mm170mm170mm172.5mm172.5mm
Handlebar Width380mm380mm400mm400mm420mm420mm
Stem Length70mm80mm90mm100mm100mm100mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length300mm300mm380mm380mm380mm380mm
Stack530mm547mm560mm578mm598mm621mm
Reach375mm382mm388mm400mm412mm425mm
Head Tube Length95mm110mm125mm142mm163mm188mm
Head Tube Angle70.5°70.75°71°71.5°71.5°71.5°
BB Height278mm278mm280mm280mm280mm280mm
BB Drop80mm80mm78mm78mm78mm78mm
Trail72mm71mm69mm66mm66mm66mm
Fork Length, Full401mm401mm401mm401mm401mm401mm
Fork Rake/Offset51mm51mm51mm51mm51mm51mm
Front Center594mm604mm613mm626mm644mm665mm
Chainstay Length425mm425mm425mm425mm425mm425mm
Wheelbase1008mm1016mm1026mm1039mm1057mm1078mm
Top Tube Length, Horizontal512mm534mm543mm566mm583mm603mm
Bike Standover Height753mm766mm781mm803mm823mm849mm
Seat Tube Length445mm456mm473mm497mm515mm545mm
Seat Tube Angle75.5°74.5°74.5°74°74°74°








Size Guide

Height (cm)Size
155-15849
163-16852
168-17554
175-18356
183-19158
191-19861
