SPECIALIZED

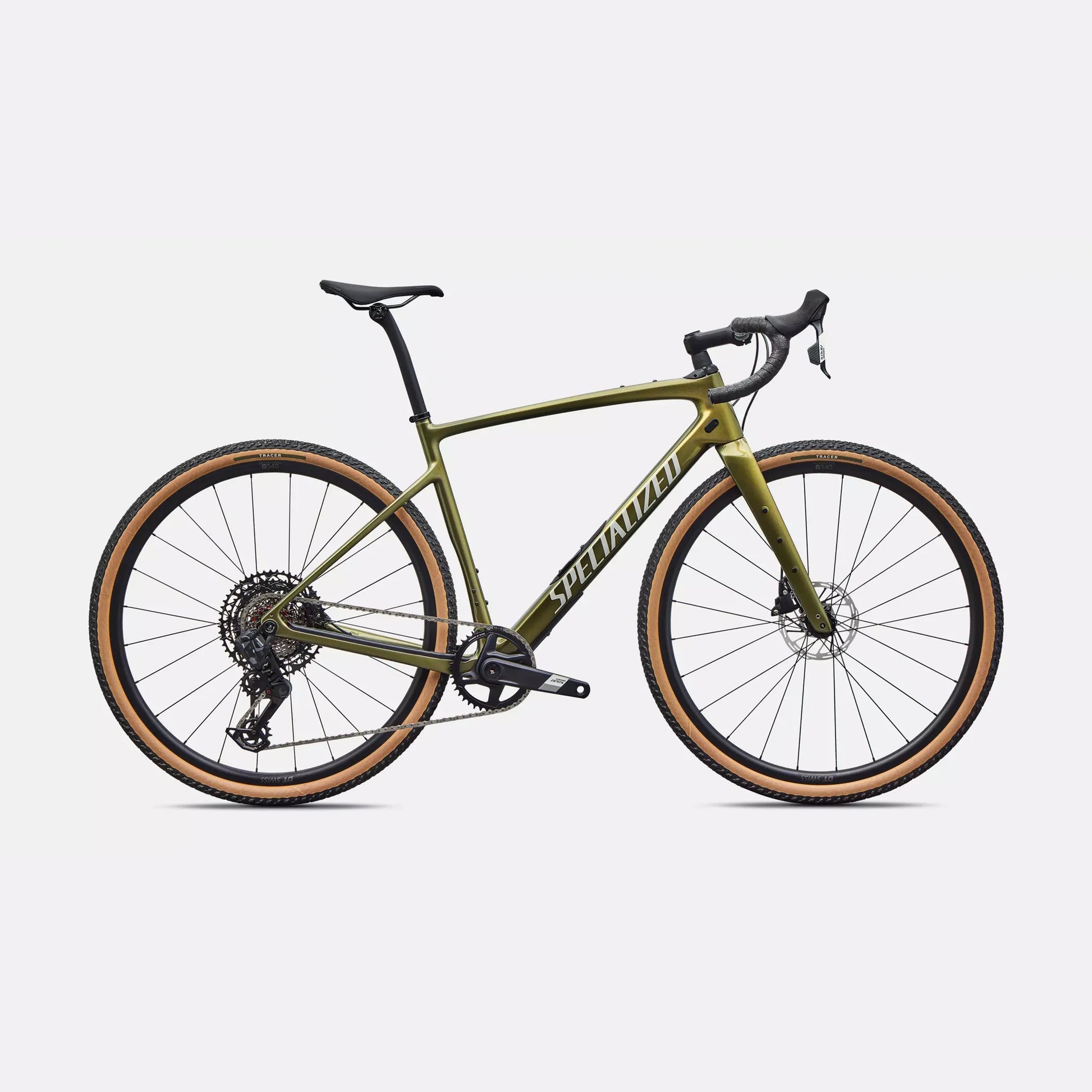

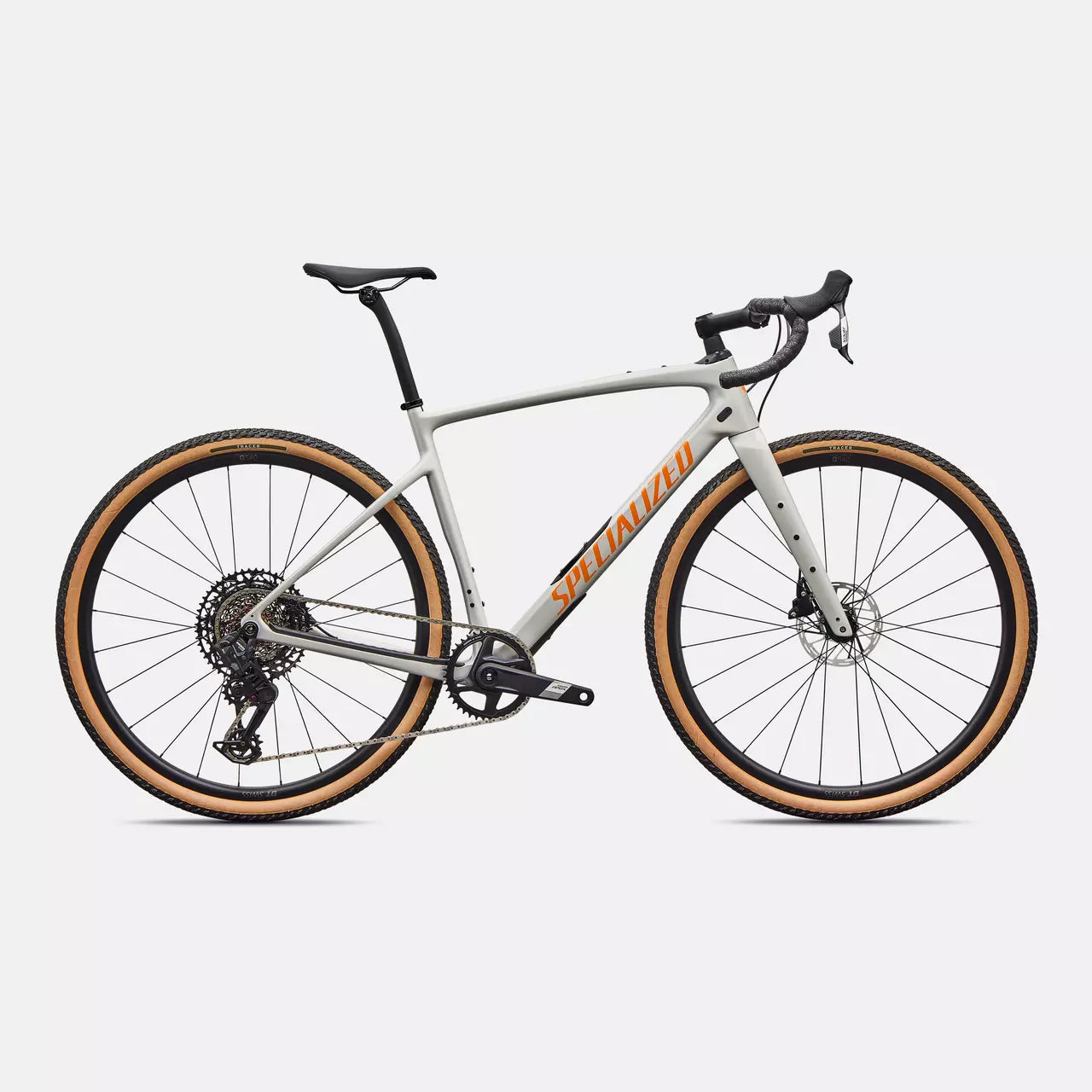

Diverge 4 Comp Carbon
Diverge 4 Comp Carbon
SKU:95426-5356
Low stock: 1 left
Couldn't load pickup availability
The Ultimate Getaway Vehicle
Race-tuned. Adventure-approved. The Diverge 4 gravel bike in E5 Alloy is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and internal storage for the first time ever on an alloy bike, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.
Share

Technical Specifications
Frameset
Frame: Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork: Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
Front Brake: SRAM Apex, hydraulic disc
Rear Brake: SRAM Apex, hydraulic disc
Drivetrain
Cassette: SRAM 12-speed,10-52t
Shift Levers: SRAM Apex AXS
Crankset: SRAM Apex DUB Wide, 40t
Chain: SRAM GX T-Type 12 speed
Bottom Bracket: SRAM DUB BSA 68 Wide
Rear Derailleur: SRAM S1000 Eagle AXS
Wheels & Tires
Front Wheel: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Rear Wheel: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Front Tire: Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
Rear Tire: Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
Inner Tubes: Presta, 700x32-50mm
Cockpit
Saddle: Body Geometry Power Comp, chrome alloy rails
Stem: Future Stem, Comp
SeatPost: Roval Terra Carbon Seat Post, 20mm Offset
Handlebars: Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
Seat Binder: Specialized Alloy, 30.8mm
Tape: Supacaz Super Sticky Kush
Accessories
SWAT: SWAT 4.0 internal downtube storage
Product details
Product ID: 223513
Weight
Weight: 9.7 kg (21 lb, 6.2 oz)
Weight Size: 56
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
| Crank Length | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 60 | 70 | 80 | 90 | 100 | 100 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 330 | 330 | 380 | 380 | 380 | 380 |
| Stack | 563 | 578 | 592 | 610 | 634 | 659 |
| Reach | 365 | 374 | 387 | 400 | 412 | 425 |
| Head Tube Length | 90 | 104 | 116 | 135 | 161 | 187 |
| Head Tube Angle | 70 | 70.5 | 71 | 71 | 71 | 71 |
| BB Drop | 85 | 85 | 85 | 85 | 85 | 85 |
| Trail | 72 | 68 | 65 | 65 | 65 | 65 |
| Fork Length, Full | 391 | 391 | 391 | 391 | 391 | 391 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center | 604 | 613 | 626 | 645 | 665 | 686 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| Top Tube Length, Horizontal | 521 | 537 | 556 | 575 | 593 | 613 |
| Bike Standover Height | 700 | 725 | 754 | 779 | 805 | 832 |
| Seat Tube Length | 400 | 430 | 470 | 500 | 530 | 560 |
| Seat Tube Angle | 74.5 | 74 | 74 | 74 | 74 | 74 |
Size Guide
| Height (cm) | Size |
| 152-163 | 49 |
| 163-170 | 52 |
| 170-178 | 54 |
| 175-180 | 56 |
| 180-188 | 58 |
| 188-196 | 61 |
