SPECIALIZED

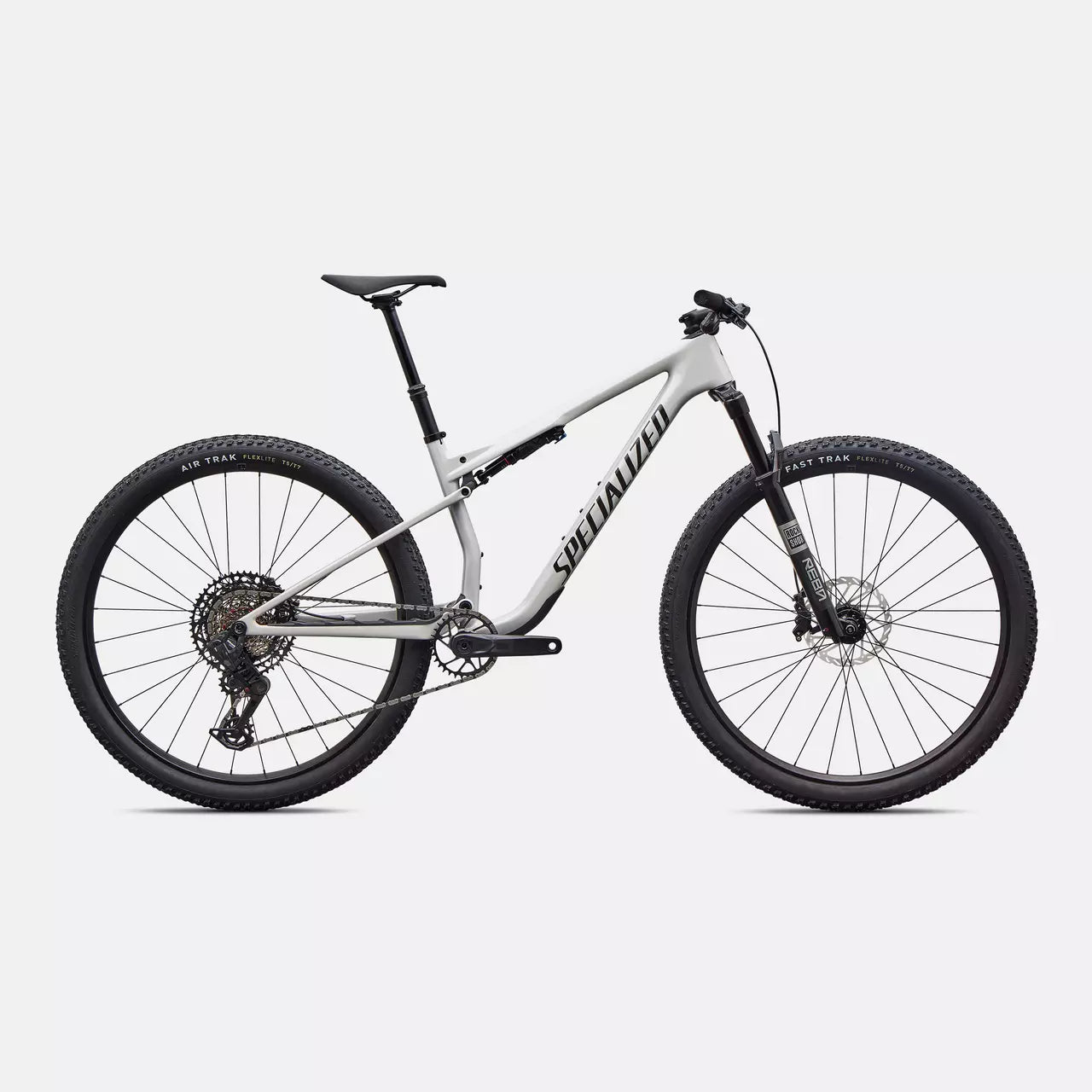

Epic 9 Sport
Epic 9 Sport
SKU:90327-6002
Low stock: 1 left
Couldn't load pickup availability
Evolution of the Fastest
The Lightest, Fastest, Most Capable XC Race Bike Ever
Epic 9 represents 24 years of winning XC innovation, distilled into the fastest race bike in the world.
We started with Epic 8’s world-beating benchmark. Then removed what held it back. 206 grams gone, making Epic 9 the lightest full-suspension XC race bike on the planet.
Then we cut suspension friction by 11% and refined the kinematics. The result: unmatched efficiency, capability, and speed per watt.
Speed emerges as the natural outcome of a bike so seamlessly integrated around the rider that it disappears, leaving only the rider’s full potential, realized.
Share
Technical Specifications
Frameset
Frame
FACT 11m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel, Optimized for wireless drivetrain
Seat Binder
Specialized Alloy 34.9, Steel Bolt
Suspension
Rear Shock
RockShox SIDLuxe Select+, Ride Dynamics developed 3 position, Lever adjust, Solo Air, 190x45mm
Fork
RockShox REBA, Motion Control damper, 15x110mm, 44mm offset, 120mm Travel
Brakes
Front Brake
SRAM DB4, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Brake
SRAM DB4, 4-piston caliper, hydraulic disc, 160mm rotor
Drivetrain
Shift Levers
SRAM AXS Pod Controller w/discrete clamp
Rear Derailleur
SRAM S1000 Eagle AXS
Cassette
SRAM 12-speed,10-52t
Chain
SRAM 70 Transmission 12-Speed Flattop Chain
Crankset
SRAM Eagle 70, 165/170mm, 55mm chainline, 32T
Bottom Bracket
SRAM DUB Threaded Wide
Wheels & Tires
Rims
Specialized Alloy, Tubeless ready, 27mm inner width, disc, 28h
Front Hub
Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes
Stainless, 14g
Front Tire
Specialized Fast Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Rear Tire
Specialized Air Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
Inner Tubes
Specialized Turbo Tube 48MM Presta valve, 29x1.75/2.4
Cockpit
Stem
Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Handlebars
Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
Grips
Supacaz foam grip, 135mm length, closed end
Saddle
Body Geometry Power Sport, steel rails
SeatPost
TranzX Dropper, 30.9mm, SM: 100mm, M: 125mm, L-XL: 150mm
Weight
Weight
11.91 kg (26 lb, 4.1 oz)
Weight Size
MD
Untitled section 2
| S | M | L | XL | |
| Crank Length | 165mm | 170mm | 170mm | 170mm |
| Handlebar Width | 750mm | 750mm | 750mm | 750mm |
| Stem Length | 60mm | 70mm | 70mm | 70mm |
| Saddle Width | 155mm | 143mm | 143mm | 143mm |
| Seatpost Length | 125mm | 150mm | 150mm | 150mm |
| Stack | 594mm | 604mm | 618mm | 645mm |
| Reach (Low) | 420mm | 450mm | 480mm | 505mm |
| Reach (High) | 425mm | 455mm | 485mm | 510mm |
| Head-Tube Length | 92mm | 105mm | 120mm | 150mm |
| Head-Tube Angle (Low) | 65.9° | 65.9° | 65.9° | 65.9° |
| Head-Tube Angle (High) | 66.3° | 66.3° | 66.3° | 66.3° |
| B-B Height | 333mm | 335mm | 335mm | 335mm |
| B-B Drop (Low) | 42mm | 40mm | 40mm | 40mm |
| B-B Drop (High) | 37mm | 35mm | 35mm | 35mm |
| Trail | 120mm | 120mm | 120mm | 120mm |
| Fork Length (full) | 531mm | 531mm | 531mm | 531mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
| Front Center | 716mm | 752mm | 788mm | 823mm |
| Chain-Stay Length | 435mm | 435mm | 438mm | 442mm |
| Wheelbase | 1148mm | 1184mm | 1223mm | 1264mm |
| Top-Tube Length (horizontal) | 568mm | 601mm | 634mm | 666mm |
| Frame Stand-Over Height | 749mm | 755mm | 757mm | 764mm |
| Seat-Tube Length | 390mm | 410mm | 455mm | 505mm |
| Seat-Tube Angle | 76° | 76° | 76° | 76° |
| Seat Post Max Insertion | 190mm | 220mm | 260mm | 315mm |
| Seat Post Min Insertion | 80mm | 80mm | 80mm | 80mm |
| Saddle Height for Effective STA | 690mm | 735mm | 780mm | 825mm |
