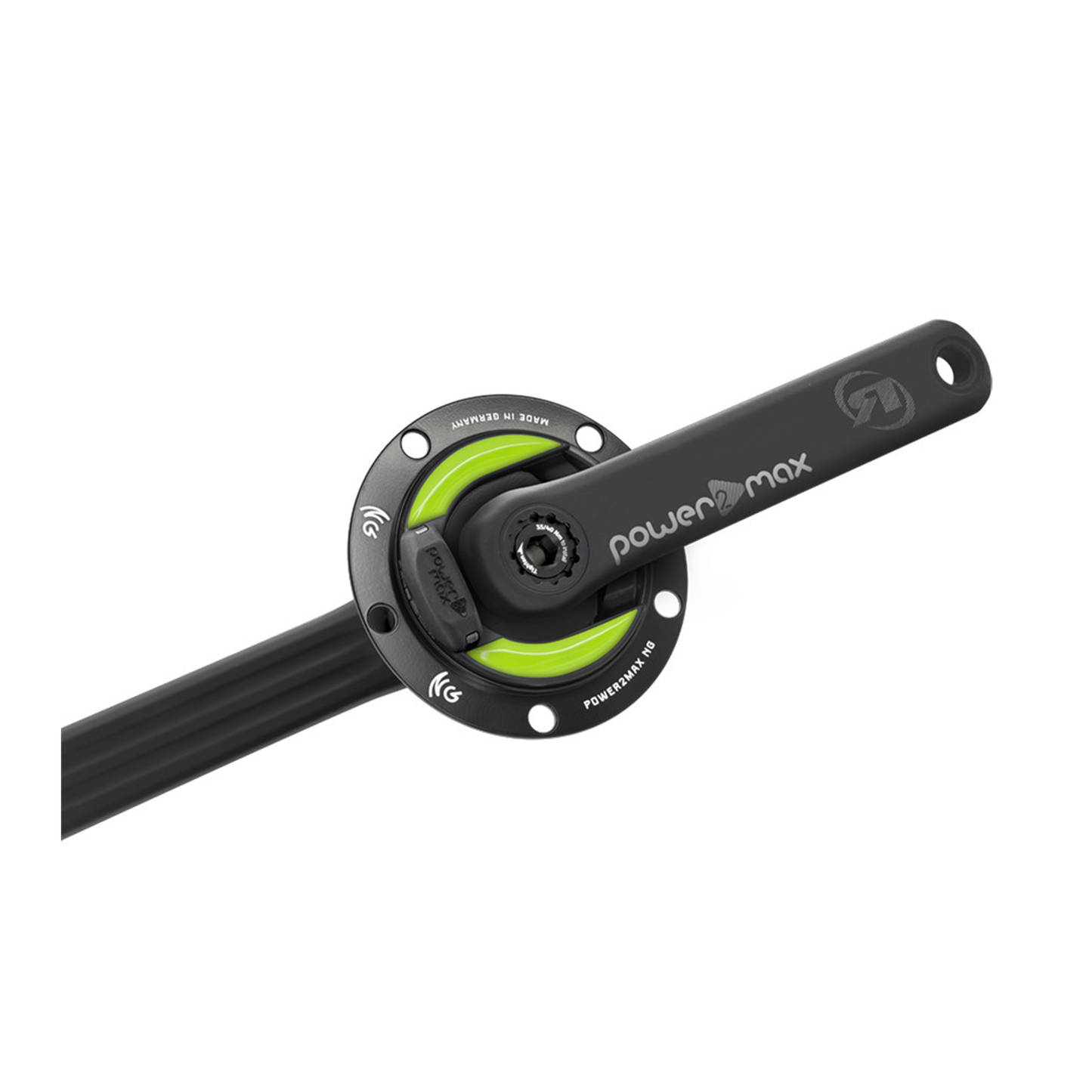

P2M NGeco Road Rotor power2max edition set 172.5mm

The NGeco Rotor power2max-Edition Set consist of our NGeco powermeter to measure the combined power of both legs and a new Rotor direct mount crankset in the exclusive power2max design.

The aluminum crankset is forged and hollow-bored and weighs only 693g including the powermeter. Its 24mm steel axle allows it to replace all current Shimano-cranksets without using any special tools. Due to customer demand the set was developed for the Shimano Hollowtech II buttom bracket standard and combines superior stiffness with an excellent price-performance ratio.

• precision:+/- 2%; Upgradable to +/- 1%
• data transmission:ANT+ / BLE
• Temperature Compensation:TC
• power supply:battery CR 2450
• battery life in hours:300
• power meter metrics:power, cadence; Upgrade with extra costs: L-R balance, pedal smoothness
• warranty:2 years, Upgradable to 5 years
• water resistent: yes

• BCD in mm:

  110, 130, 110 4-S
• weight power meter:

  110: 157g, 130: 168g, 110-4S: 158g, 110-4SL: 125g
• weight power meter with cranks:

  110: 693g, 130: 704g, 110-4S: 694g
• chain line:

  43,5 mm
• Q-factor:

  148 mm
• crank axle diameter mm:

  24
• crank length in mm:

  165, 170, 172.5, 175
