SPECIALIZED

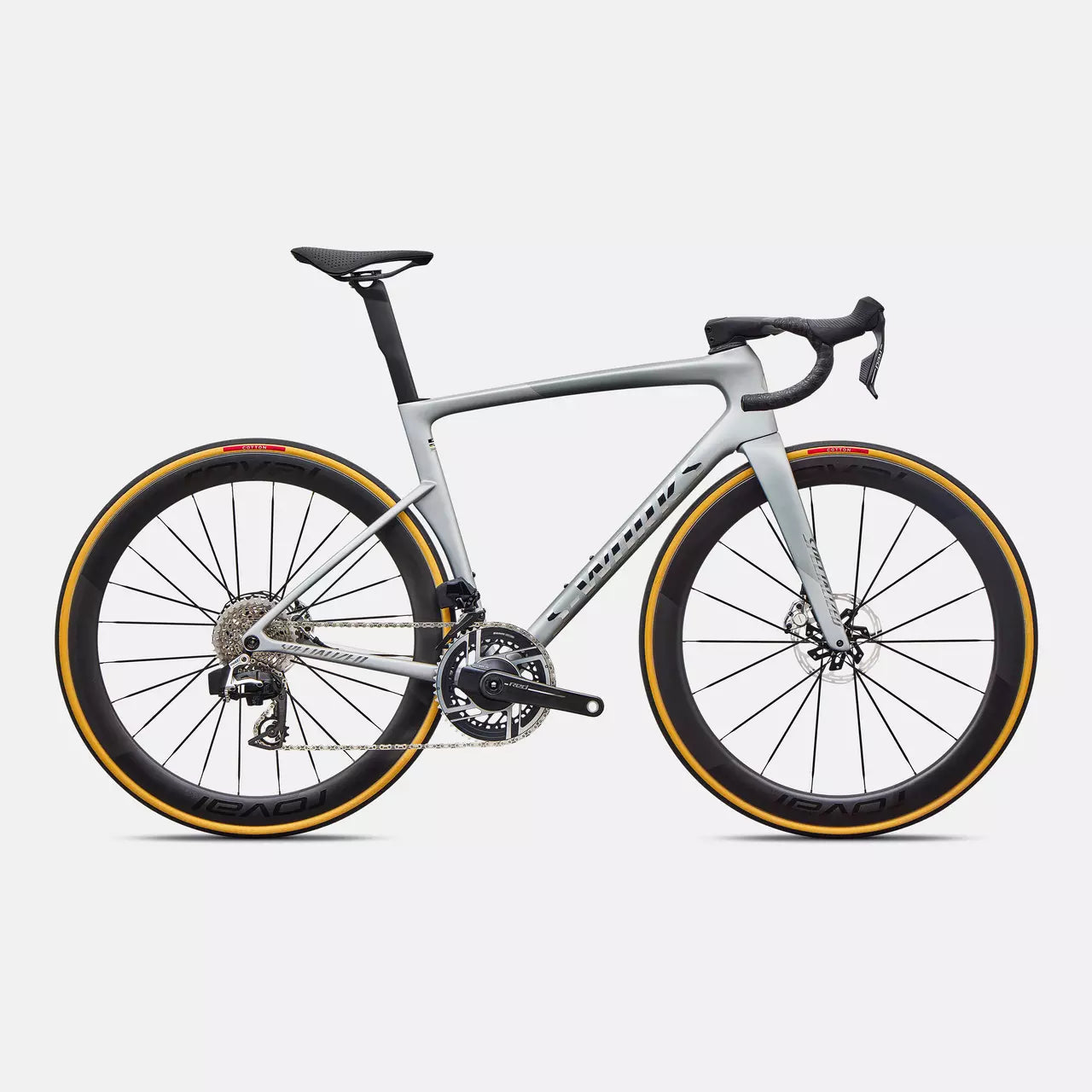

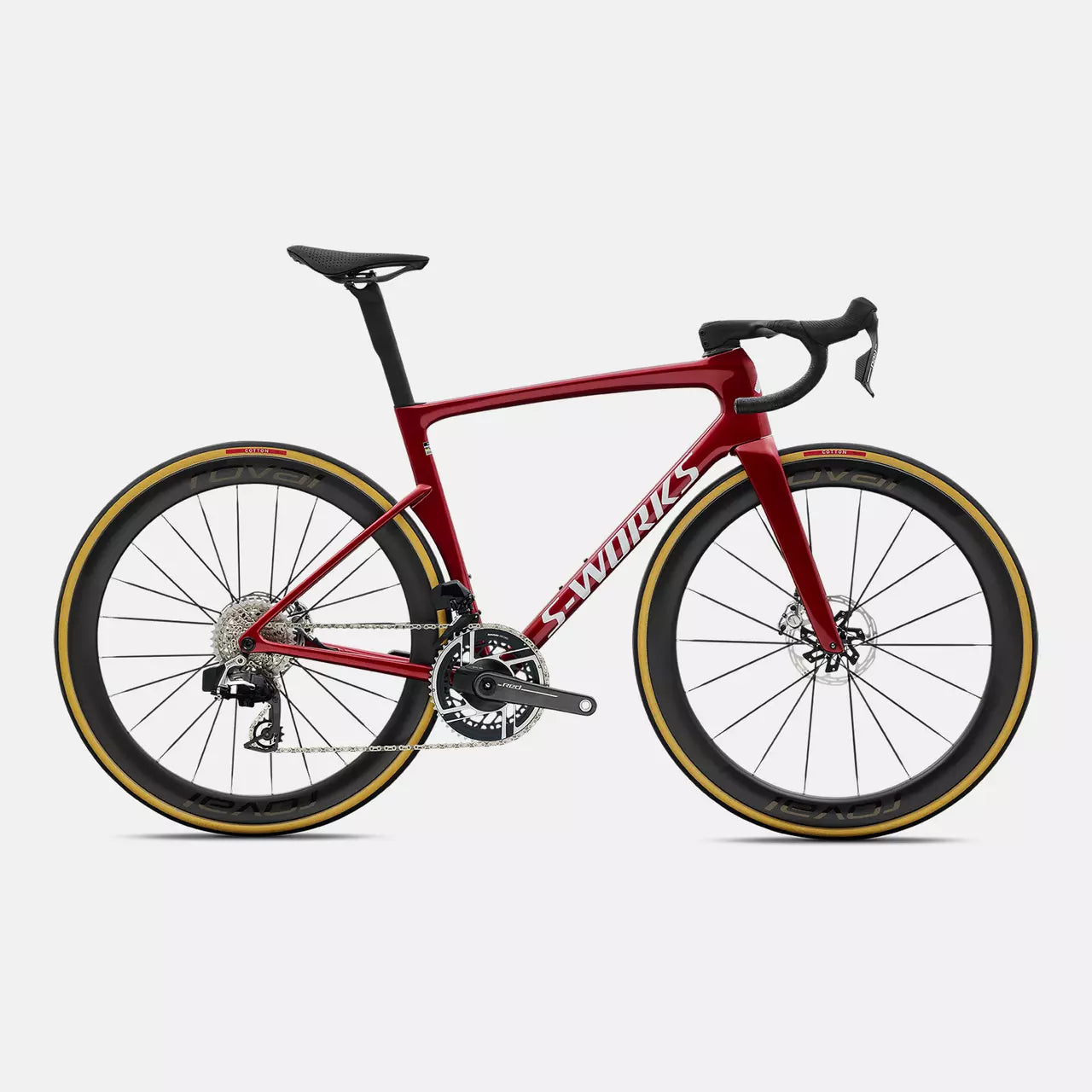

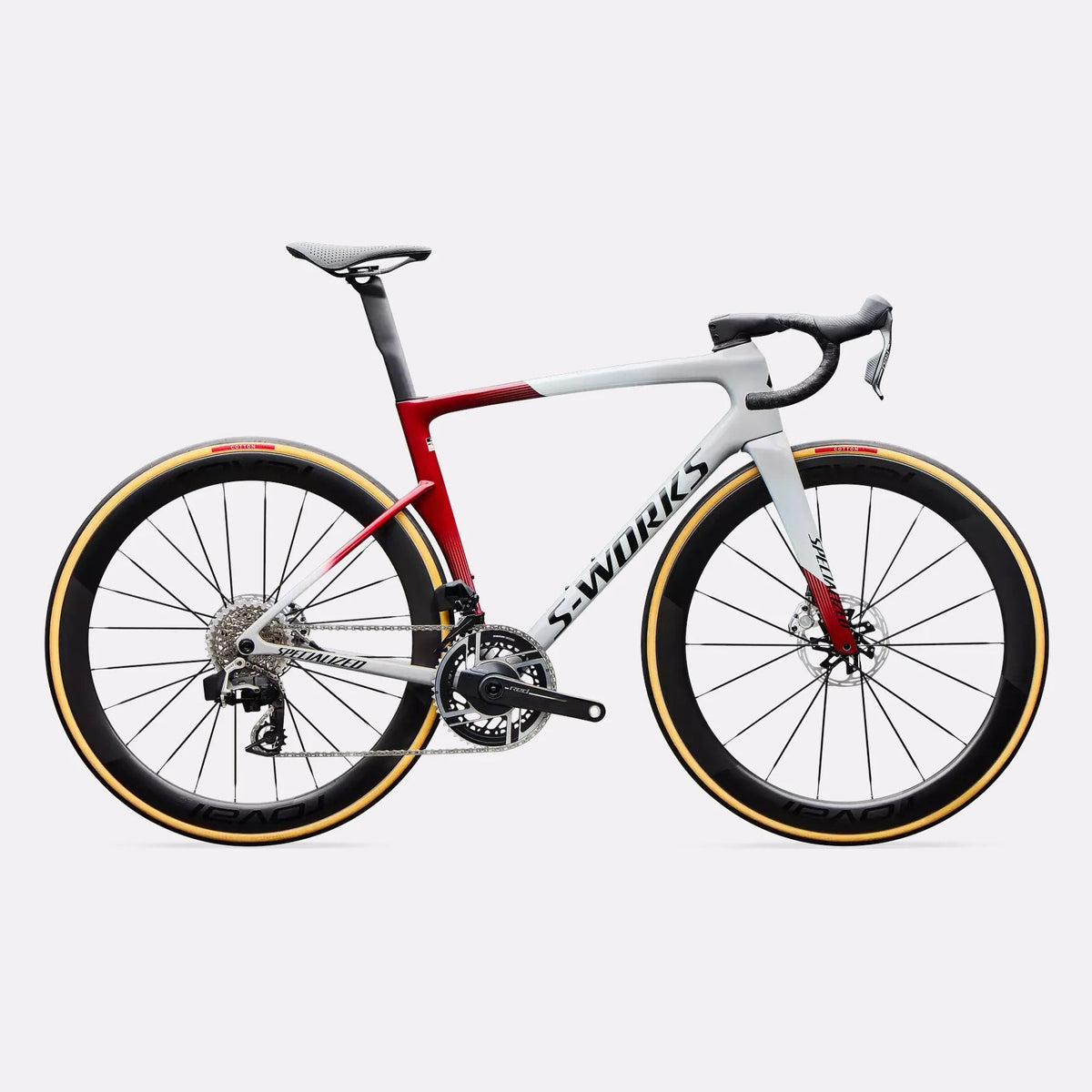

S-Works Tarmac SL9 - SRAM RED AXS

SKU:74927-0656

R 280,000.00

~~R 280,000.00~~ R 280,000.00

Sold out

Taxes included. Shipping calculated at checkout.

Colour: Gloss White Silver Metallic

Size 49 52 54 56 58 61

Quantity

Low stock: 1 left

One Bike To Rule Them All

The all-new S-Works Tarmac SL9 is the fastest road bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made. Tarmac SL9 turns more of your effort into pure speed—validated for real race courses, real terrain, real riders. When the goal is to cross the line first, no road bike gets you there faster.

View full details

Technical Specifications

Frameset

Frame: S-Works Tarmac SL9 FACT 12r Carbon, Rider First Engineered, Win Tunnel Engineered, Ceramic Speed SLT headset bearings, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Suspension

Fork: S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc

Brakes

Front Brake: SRAM RED E1, hydraulic disc

Rear Brake: SRAM RED E1, hydraulic disc

Drivetrain

Bottom Bracket: Ceramic Speed BB Alpha, BSA DUB

Chain: SRAM RED E1

Crankset: SRAM RED AXS E1 with Quarq Power Meter, 50/37

Rear Derailleur: SRAM RED AXS E1, 12-speed

Front Derailleur: SRAM RED AXS E1, braze-on

Shift Levers: SRAM RED AXS E1, hydraulic disc

Cassette: SRAM RED XG-1290 E1, 12-speed, 10-36t

Wheels & Tires

Front Tire: Cotton TLR, 700x30

Rear Tire: Cotton TLR, 700x30

Rear Wheel: Roval Rapide CLX III, Tubeless, 21mm internal width carbon rim, 48.5mm depth, Win Tunnel Engineered, Roval LF19-R 24H hub with Sinc Ceramic Bearings, Roval by ARRIS Composite Aero Spoke with Ti end fittings

Front Wheel: Roval Rapide CLX III, Tubeless, 21mm internal width carbon rim, 51mm depth, Win Tunnel Engineered, Roval LF18F 18H hub with Sinc Ceramic Bearings, Roval by ARRIS Composite Aero Spoke with Ti end fittings

Inner Tubes: 700x25-35mm, 65mm Presta valve, TPU tube

Cockpit

Handlebars: Roval Rapide Cockpit, Integrated Bar/Stem

Saddle: -Works Power with Mirror

Seatpost: S-Works Rapide Post, FACT Carbon, 15mm offset

Tape: Supacaz Super Sticky Kush

Seat Binder: Tarmac integrated wedge

Product details

Product ID: 293533

Weight

Weight: 6.6 kg (14 lb, 8.8 oz)

Weight Size: 56

Geometry

	49	52	54	56	58	61
Crank Length	165	165	170	170	172.5	172.5
Handlebar Width	380	380	380	400	420	420
Stem Length	75	90	100	100	110	110
Saddle Width	155	155	143	143	143	143
Seatpost Length	300	300	380	380	380	380
Frame Stack	514	527	544	565	591	612
Frame Reach	375	380	384	395	402	408
Stack to Stem	522	535	552	573	599	620
Reach to Stem	372	377	381	393	400	406
Head Tube Length	109	120	140	157	184	204
Head Tube Angle	71.75	72.5	72.5	73.5	73.5	74
BB Height	266	266	268	268	268	268
BB Drop	74	74	72	72	72	72
Trail	63	58	58	55	55	52
Fork Length, Full	370	370	370	370	370	370
Fork Rake/Offset	47	47	47	44	44	44
Front Center	570	572	582	587	602	609
Chainstay Length	410	410	410	410	410	410
Wheelbase	973	975	986	991	1006	1013
Top Tube Length, Horizontal	509	531	540	563	577	595
Bike Standover Height	734	745	767	785	807	833
Seat Tube Length	445	456	473	494	515	545
Seat Tube Angle	75.5	74	74	73.5	73.5	73

Size Guide

Height (cm)	Size
155-163	49
163-170	52
170-175	54
175-180	56
180-188	58
188-196	61
