SPECIALIZED

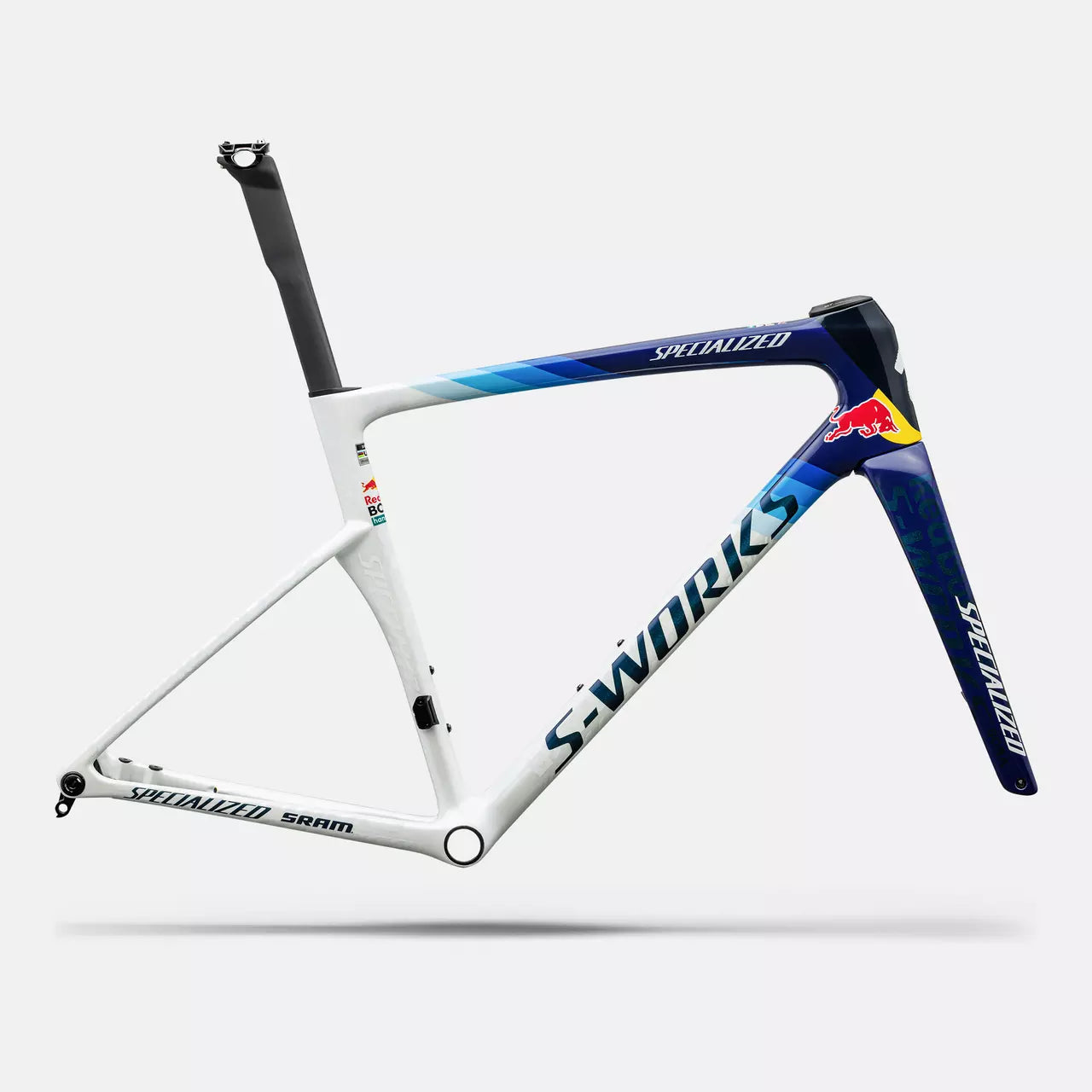

S-Works Tarmac SL9 Team Replica Frameset - Red Bull - BORA - hansgrohe
S-Works Tarmac SL9 Team Replica Frameset - Red Bull - BORA - hansgrohe
SKU:74927-1149
Out of stock
Couldn't load pickup availability
One Bike To Rule Them All
The all-new S-Works Tarmac SL9 is the fastest road bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made. Tarmac SL9 turns more of your effort into pure speed—validated for real race courses, real terrain, real riders. When the goal is to cross the line first, no road bike gets you there faster.
Now you can get wings on every ride the same way Remco Evenepoel and his teammates do on race day with the S-Works Tarmac SL9: Red Bull - BORA - hansgrohe Team Replica Edition. Are your legs up for it?
Share

Technical Specifications
Frameset
Frame
S-Works Tarmac SL9 FACT 12r Carbon, Rider First Engineered, Win Tunnel Engineered, Ceramic Speed SLT headset bearings, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork
S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc
Cockpit
Seatpost
S-Works Rapide Post, FACT Carbon, 15mm offset
Seat Binder
Tarmac integrated wedge
Weight
Weight
1.39 kg (3 lb, 1.0 oz)
Weight Size
56
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | |
| Seatpost Length | 300mm | 300mm | 300mm | 380mm | 380mm | 380mm | 380mm |
| Frame Stack | 501mm | 514mm | 527mm | 544mm | 565mm | 591mm | 612mm |
| Frame Reach | 366mm | 375mm | 380mm | 384mm | 395mm | 402mm | 408mm |
| Stack to Stem | 509mm | 522mm | 535mm | 552mm | 573mm | 599mm | 620mm |
| Reach to Stem | 363mm | 372mm | 377mm | 381mm | 393mm | 400mm | 406mm |
| Head Tube Length | 99mm | 109mm | 120mm | 140mm | 157mm | 184mm | 204mm |
| Head Tube Angle | 70.5° | 71.75° | 72.5° | 72.5° | 73.5° | 73.5° | 74° |
| BB Height | 266mm | 266mm | 266mm | 268mm | 268mm | 268mm | 268mm |
| BB Drop | 74mm | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
| Trail | 71mm | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
| Fork Length, Full | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm | 370mm |
| Fork Rake/Offset | 47mm | 47mm | 47mm | 47mm | 44mm | 44mm | 44mm |
| Front Center | 567mm | 570mm | 572mm | 582mm | 587mm | 602mm | 609mm |
| Chainstay Length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
| Wheelbase | 970mm | 973mm | 975mm | 986mm | 991mm | 1006mm | 1013mm |
| Top Tube Length, Horizontal | 496mm | 509mm | 531mm | 540mm | 563mm | 577mm | 595mm |
| Bike Standover Height | 722mm | 734mm | 745mm | 767mm | 785mm | 807mm | 833mm |
| Seat Tube Length | 433mm | 445mm | 456mm | 473mm | 494mm | 515mm | 545mm |
| Seat Tube Angle | 75.5° | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
