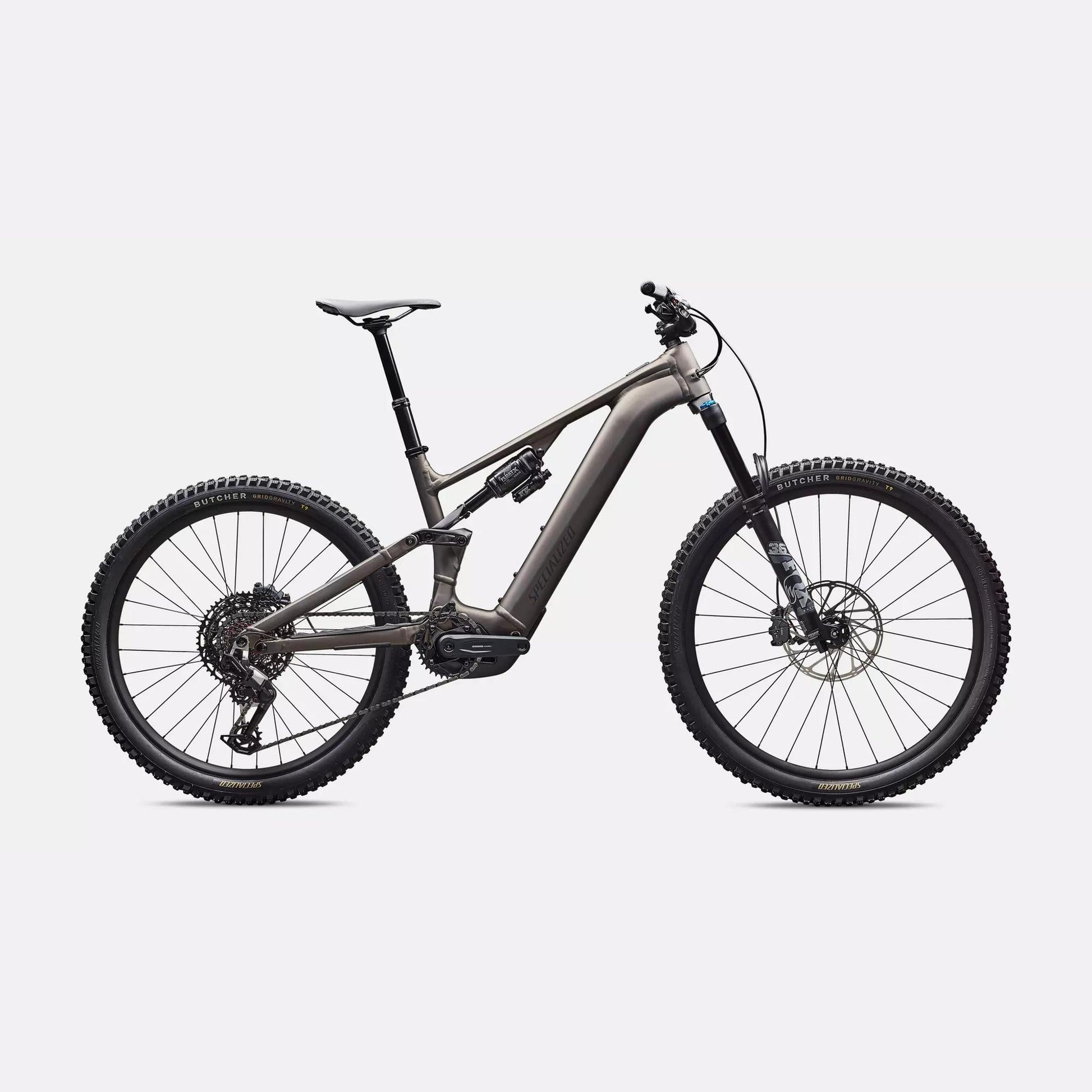

Turbo Levo 4 Comp Alloy
Turbo Levo 4 Comp Alloy
SKU:95226-5201
Out of stock
Couldn't load pickup availability
SuperNatural Power, Ride, and Range
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
Share

Technical Specifications
E-bike
UI/Remote: All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized App
Motor: Specialized 3.1 Motor, 105Nm torque, 810W power
Charger: Specialized 4amp charger
Battery: 840Wh battery
Frameset
Frame: All new Levo 4 M5 Alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Seat Binder: Alloy, 38.6mm
Suspension
Fork: FOX 36 Rhythm, 29", S2-S6: 160mm S1: 150mm, GRIP damper with Sweep adjust, 44mm offset, 15x110mm boost, through axle
Rear Shock: S2-S6: FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm, S1: FOX FLOAT Performance, Ride Dynamics Trail Tune, 2-position lever w/ LSR adjustment 210x55mm
Brakes
Front Brake: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
Rear Brake: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
Cassette: SRAM 12-speed,10-52t
Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel
Chain: SRAM 70 Transmission 12-Speed Flattop Chain
Rear Derailleur: SRAM Eagle 90 T-Type
Shift Levers: SRAM 90 trigger, 12-speed, single click
Crankset: SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Wheels & Tires
Rear Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"
Front Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
Spokes: DT Swiss Industry
Front Hub: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims: Specialized, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes: Standard, Presta valve
Cockpit
Stem: Alloy Trail Stem, 35mm bar bore
Handlebars: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, S1-S2: 780mm width and 30mm rise, S3-S6 800mm width and 50mm rise
Saddle: Bridge Comp, Hollow Cr-mo rails 155/143
Grips: Specialized Trail Grips
Seatpost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4: 170mm, S5/S6: 190mm
Accessories
SWAT: SWAT internal downtube storage
Product details
Product ID: 221343
Compliance Certification: As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
Weight: 25.70 kg (56 lb, 11.2 oz)
Weight Size: S4
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |
| Crank Length | 155 | 155 | 155 | 155 | 155 | 155 |
| Handlebar Width | 780 | 780 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 40 | 40 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 100 | 125 | 150 | 170 | 190 | 190 |
| Stack | 609 | 618 | 626 | 638 | 652 | 667 |
| Reach | 407 | 435 | 455 | 480 | 505 | 535 |
| Headtube Length | 94 | 95 | 103 | 117 | 132 | 149 |
| Headtube Angle | 64 | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| BB Height | 355 | 350 | 350 | 350 | 350 | 350 |
| BB Drop | 24.13 | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| Trail | 132 | 132 | 137 | 132 | 132 | 132 |
| Fork Length (full) | 567 | 577 | 577 | 577 | 577 | 577 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| Front Center | 744 | 765 | 789 | 820 | 851 | 888 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1179 | 1200 | 1223 | 1254 | 1286 | 1323 |
| Top-tube Length (horizontal) | 556 | 578 | 599 | 627 | 655 | 689 |
| Bike Standover Height | 753 | 753 | 754 | 753 | 758 | 761 |
| Seat Tube Length | 379 | 390 | 405 | 425 | 445 | 465 |
| Seat Tube Angle | 76 | 77 | 77 | 77 | 77 | 77 |
| Saddle Height for Effective ST Angle | 645 | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertion | 264 | 274 | 289 | 313 | 337 | 357 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 | 80 |
Size Guide
| Height (cm) | Size |
| 157-173 | S2 |
| 165-180 | S3 |
| 173-188 | S4 |
| 178-193 | S5 |
| 188-203 | S6 |
