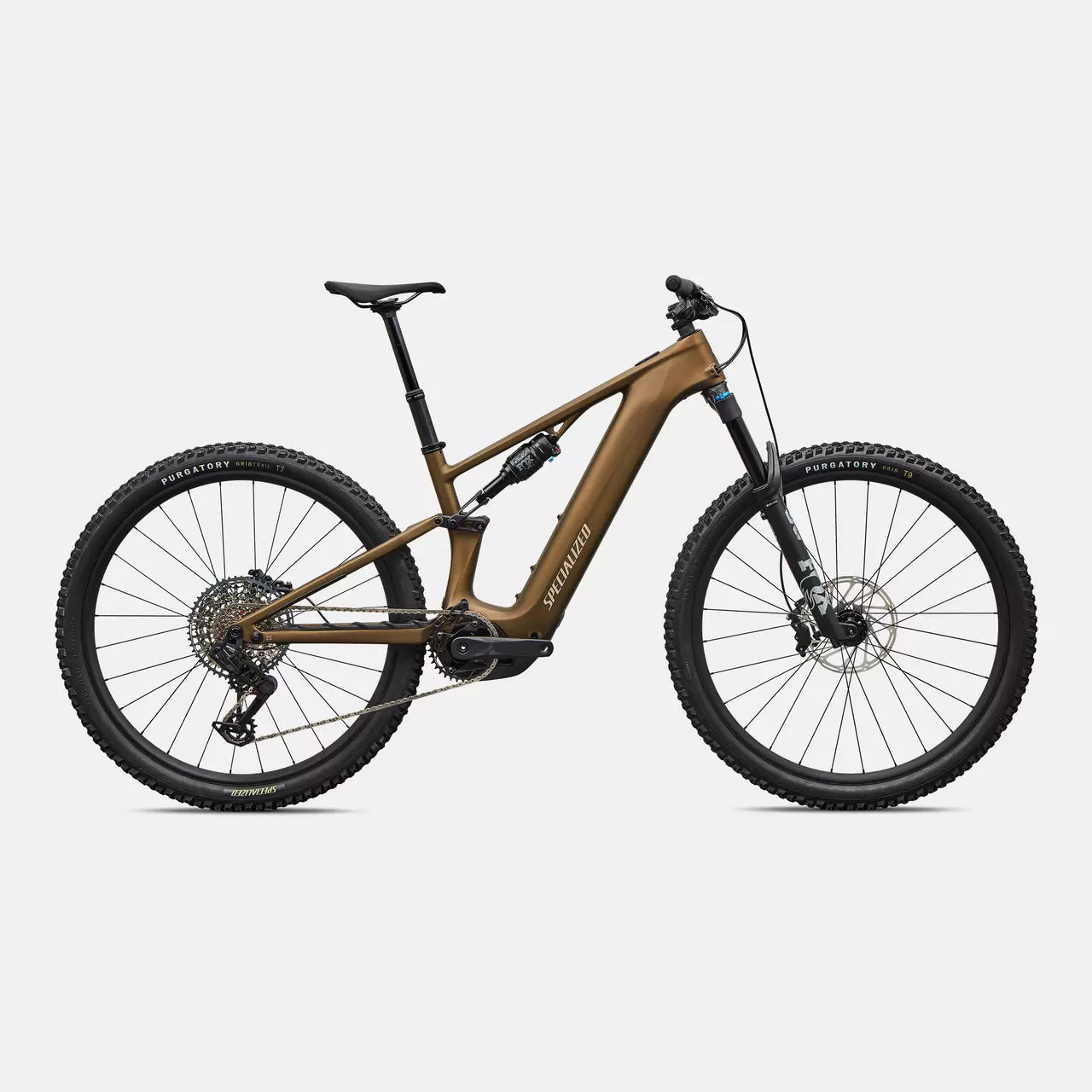

Turbo Levo R Comp
Turbo Levo R Comp
SKU:95226-8002
Low stock: 1 left
Couldn't load pickup availability
SuperNatural Power, Agility, and Range
Levo R
Nothing this powerful has ever felt this agile. Light, tight, and ready to fight, Levo R channels the SuperNatural power of Levo 4 but sheds its manners. Like a rally car unleashed on dirt, you and Levo R become one, stealing endless flow and finishing with the grin of a thief who slipped away clean.
This is Electric Rally.
Share
Technical
E-Bike
Motor
Specialized 3.1 Motor, 105Nm torque, 810W power
Battery
Specialized Turbo X2 840Wh integrated battery pack
UI/Remote
Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Charger
Specialized 4amp charger
Frameset
Frame
FACT 11m Carbon, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock
FOX FLOAT Performance GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm
Fork
FOX 36 SL Performance, GRIP Damper, 140mm travel, 44mm offset, 15x110mm
Brakes
Front Brake
SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
Rear Brake
SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
Shift Levers
SRAM AXS POD Controller
Rear Derailleur
SRAM S-1000 Eagle AXS Transmission
Cassette
SRAM GX Transmission, XS 1275, 10-52t
Chain
SRAM GX Eagle Transmission 12-Speed Flattop Chain
Crankset
SRAM Eagle 70, BROSE/ISIS, 160mm, 32T
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Wheels & Tires
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Front Hub
Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28H
Rear Hub
Specialized Alloy Rear Hub Disc, Sealed Cardridge Bearings, 6-Bolt, 12X148mm Thru-Axle, 32H, Xd Steel Fhb
Spokes
DT Swiss Elemental
Front Tire
Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4
Rear Tire
Specialized Purgatory, Grid Trail Casing, T7 Compound, 29x2.4 (S1 27.5x2.4)
Inner Tubes
Standard, Presta Valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebars
Specialized Alloy, 30mm/40mm rise, 35mm, 800mm wide
Grips
Specialized Trail Grips
Saddle
Body Geometry Power Comp, steel rails
SeatPost
X-Fusion Manic, 34.9, S1-S2: 125mm, S3: 150mm, S4: 170mm, S5-S6: 190mm Travel, 0mm offset
Accessories
SWAT
SWAT internal downtube storage
Product Details
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Weight
Weight
22.34 kg (49 lb, 4.0 oz)
Weight Size
S3
Geometry
| S1 - 27.5 | S2 - 29 | S3 - 29 | S4 - 29 | S5 - 29 | S6 - 29 | |
|---|---|---|---|---|---|---|
| Crank Length | 160mm | 160mm | 160mm | 160mm | 160mm | 160mm |
| Handlebar Width | 800mm | 800mm | 800mm | 800mm | 800mm | 800mm |
| Stem Length | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 125mm | 125mm | 150mm | 170mm | 190mm | 190mm |
| Stack | 602mm | 607mm | 616mm | 630mm | 644mm | 657mm |
| Reach | 400mm | 420mm | 450mm | 475mm | 500mm | 525mm |
| Head-Tube Length | 95mm | 100mm | 110mm | 125mm | 140mm | 155mm |
| Head-Tube Angle | 64.8° | 65° | 65° | 65° | 65° | 65° |
| B-B Height (low BB) | 339mm | 339mm | 339mm | 339mm | 339mm | 339mm |
| B-B Drop | 36mm | 36mm | 36mm | 36mm | 36mm | 36mm |
| Trail | 128mm | 126mm | 126mm | 126mm | 126mm | 126mm |
| Fork Length (full) | 550mm | 550mm | 550mm | 550mm | 550mm | 550mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 716mm | 736mm | 770mm | 801mm | 833mm | 863mm |
| Chainstay Length | 447mm | 447mm | 447mm | 447mm | 447mm | 447mm |
| Wheelbase | 1160mm | 1181mm | 1215mm | 1246mm | 1277mm | 1309mm |
| Top-Tube Length (horizontal) | 539mm | 560mm | 592mm | 620mm | 649mm | 677mm |
| Bike Stand-Over Height | 761mm | 763mm | 773mm | 783mm | 793mm | 803mm |
| Seat-Tube Length | 375mm | 385mm | 405mm | 425mm | 445mm | 465mm |
| Seat-Tube Angle | 77° | 77° | 77° | 77° | 77° | 77° |
| Max Seatpost Insertion | 292mm | 312mm | 210mm | 227mm | 249mm | 271mm |
| Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
| Saddle Height for Effective ST Angle | 645mm | 690mm | 735mm | 780mm | 825mm | 870mm |
