SPECIALIZED

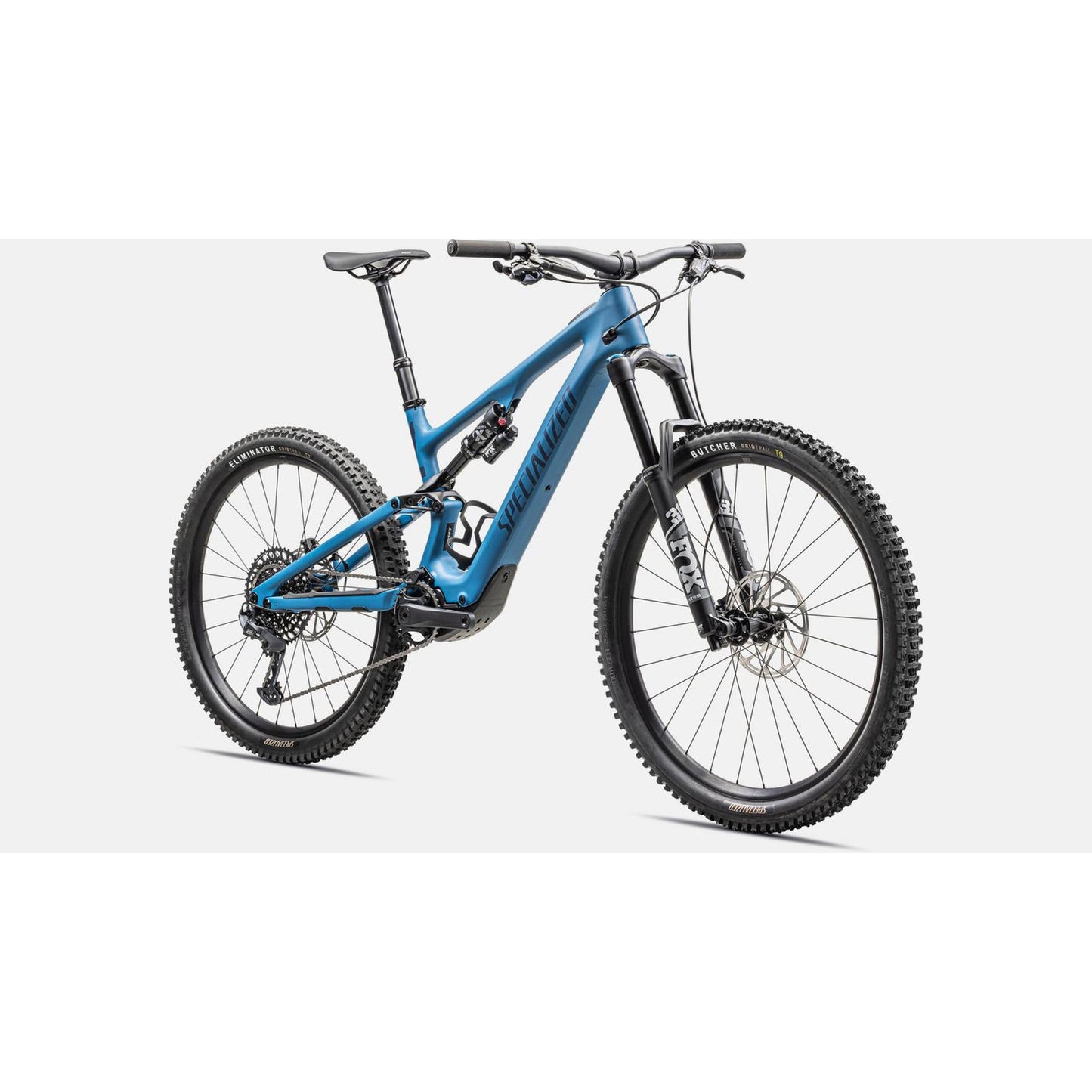

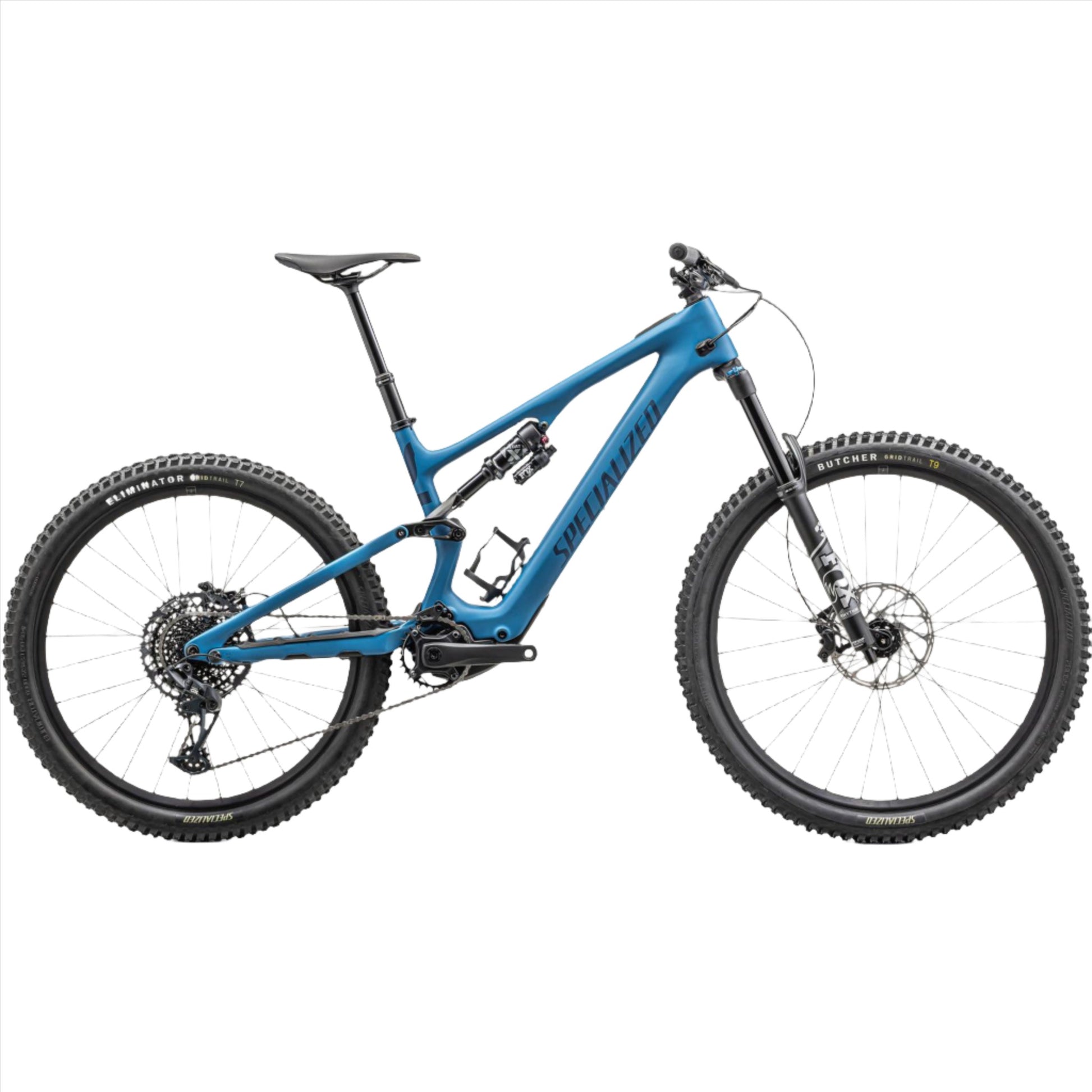

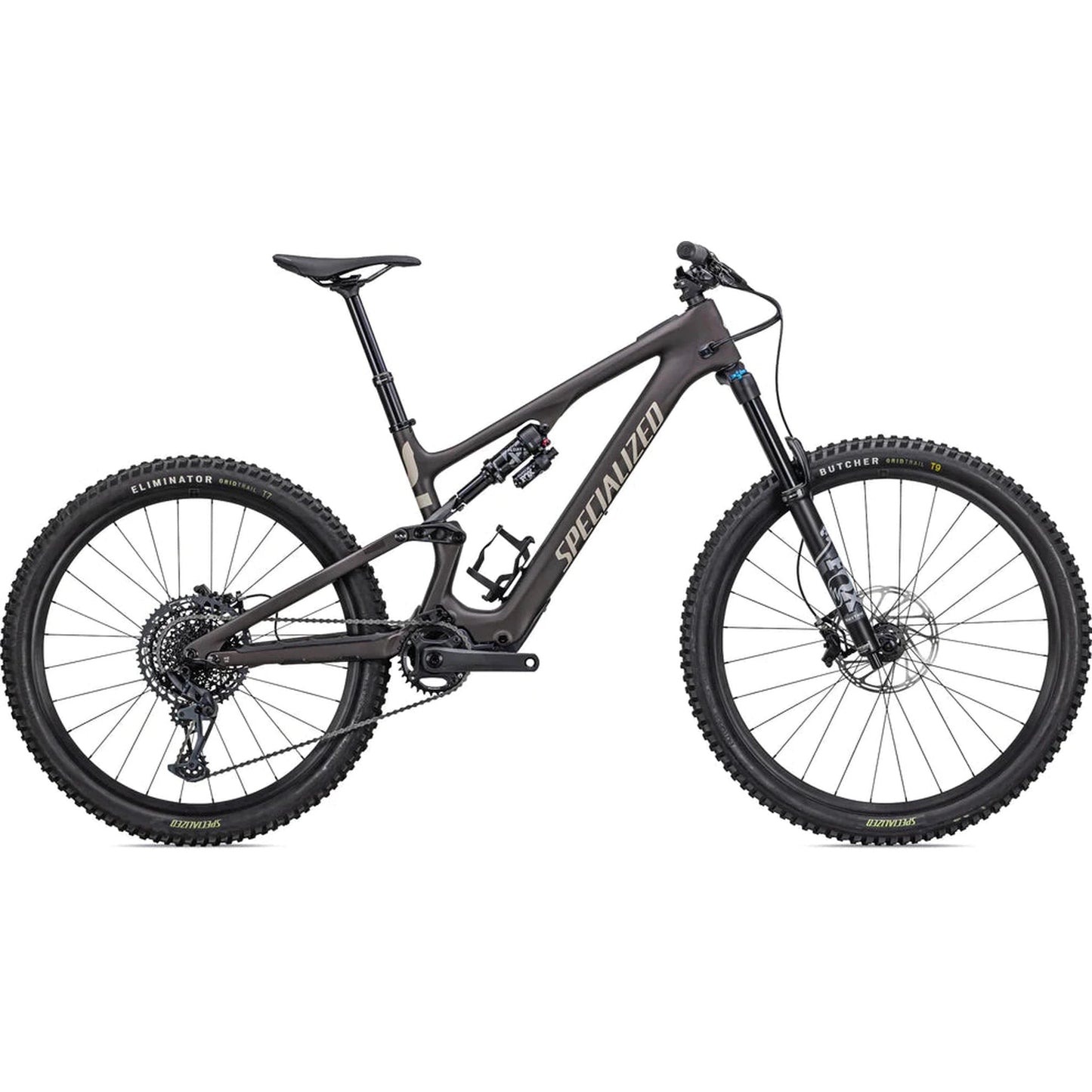

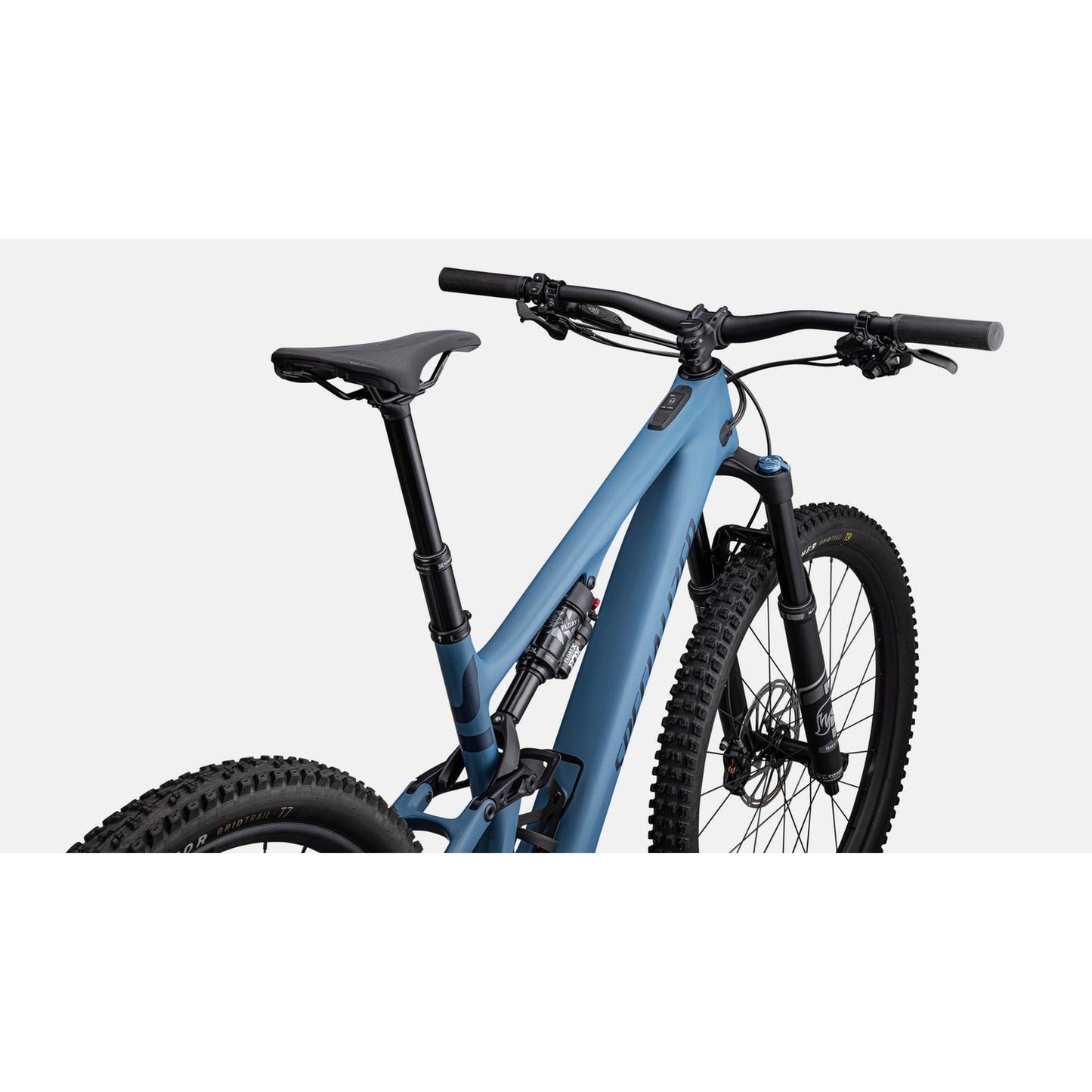

Turbo Levo SL Comp Carbon - Gen 2

Turbo Levo SL Comp Carbon - Gen 2

SKU:96823-5104

Regular price R 133,999.00
Regular price R 149,000.00 Sale price R 133,999.00
SAVE R 15,001.00 Sold out
Tax included. Shipping calculated at checkout.
Color
Size

Low stock: 1 left

Read More

The Levo SL delivers unmatched ride quality and capability, amplified. For the trail rider who craves serpentine singletrack, sending it skyward, and lives for advancing your skills and fitness. Meet your new bike, the Levo SL. You’ll be blown away by it’s unmatched combination of flawless handling, capability, and “2 X You” amplification that gives you the Power to Ride More Trails. Compare it to anything out there, with a motor or without, and we know you’ll agree — Levo SL is THE ULTIMATE TRAIL BIKE.

IT’S ALL ABOUT THE RIDE — When everything works just right a bike disappears when you ride it. We stripped away the mass to keep the Levo SL lean and responsive. It’s tough enough to withstand heavy abuse, but light enough to nail big moves. Its dialed geometry, kinematics, and shock tuning leave nothing desired.

THE FRAME OF REFERENCE — Everything starts here. Lively, precise ride feel. Strategic carbon fiber layup provides super-responsive chassis stiffness. We tuned the entire chassis—front end, rear end, and the link that unifies them—as a single unit to minimize lateral flex under pedaling to harness every bit of pedal force.

GEOMETRY OF CONTROL —  The cockpit centers you in the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle, and reduced fork offset keep things stable in the rough while giving you the freedom to destroy the turns. The head angle can be personalized to, 63, 64.25, and 65.5 degrees.

LESS IS MORE – The Levo SL is greyhound lean and telepathically responsive. Its curated component selection is light, yet capable—for true trail riding. Put it all together and you get the benefits of amplification along with benchmark handling.

MIXED WHEEL —  A 29” front wheel ensures stability and surefooted performance in the most hectic terrain, while a 27.5” rear wheel allows for a compact chainstay and super responsive behavior. If you prefer the rolling and traction benefits of a 29” rear wheel, just flip the pivot link chip and mount the big wheel.

TURBO OPERATING SYSTEM — Our seamlessly-integrated operating system delivers unmatched performance across torque, range, ride feel, ride quality, power, reliability, and rider experience. It’s the invisible hand that enables you to do more, know more, go farther, feel stronger, and have more fun.

SPECIALIZED SL 1.2 MOTOR — The all new Specialized SL 1.2 motor is whisper quiet, boasts unmatched smoothness, delivers 43% more torque (50Nm), and 33% more power (320 Watts) than its predecessor. Resulting in “2x You” performance; it’s you pedaling, but a side of you only a Levo can bring out.

GO DEEP RANGE — Levo SL features a premium, high quality, and seamlessly integrated 320Wh battery pack. Combined with the efficient motor, you’re set up for long, epic rides of up to 5 hours (in Eco Mode). For longer rides, just slide our 160 Wh Range Extender (sold separately) into your bottle cage—for 50% more range.

MASTERMIND TCU — Our most advanced and intuitive e-bike control unit. Connecting the bike, the Turbo OS, the Mission Control App as well as the rider, all in a protected and easily visible display. MasterMind TCU enables over-the-air updates so your bike will get even better over time. With MicroTune fine-tuning power output levels in real time is at your fingertips, optimizing range management and performance.

MISSION CONTROL APP — The Levo SL integrates fully with our Mission Control App and lets you personalize your motor characteristics with MicroTune, Support, and Peak Power.  You can say goodbye to range anxiety with Smart Control, and even thwart would-be thieves with Turbo System Lock.

  • All new carbon frame, comes in mixed wheel configuration (compatible to 29 rear with no extra parts needed.) New kinematic with flatter leverage curve which provides more support and playfulness off the top, but plenty of control in rougher conditions. The headtube angle and bottom bracket height are both adjustable.
  • SRAM GX Eagle shifting
  • SRAM Code RS brakes



View full details

Technical Specifications

SUSPENSION

Rear Shock: S2-S6: Fox Float X Performance series, 210x55mm, S1: Fox Float DPS Performance series, , 210x50mm

Fork: Fox 36 Rhythm, 29", 44mm offset, Grip damper, S1: 150mm, S2-S6: 160mm travel



FRAMESET

Frame: All new Levo SL carbon Frame, Fact 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels.

Seat Binder: Alloy, 38.6mm



COCKPIT

Stem: Alloy Trail Stem, 35mm bar bore

Saddle: Bridge Comp, Hollow Cr-mo rails, 155/143mm

Tape: Specialized Trail Grips

Handlebars: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

SeatPost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm



WHEELS

Rear Hub: Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h

Front Hub: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Front Tire: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Spokes: DT Swiss Industry

Rear Tire: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"

Rims: Specialized 29/27.5, hookless alloy, 30mm inner width, tubeless ready

Inner Tubes: Standard, Presta Valve



E-BIKE

Wiring Harness: Custom Specialized wiring harness

Charger: Custom charger, 48V System w/ SL system charger plug

Motor: New Specialized 1.2 SL Custom Rx Trail Tuned Motor

UI/Remote: Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote

Battery: Specialized SL1-320, fully integrated, 320Wh



DRIVETRAIN

Chainrings: New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring

Crankset: SRAM Alloy Crankset, Dub interface

Rear Derailleur: SRAM GX Eagle, 12-speed

Shift Levers: SRAM GX, trigger, 12-speed

Chain: SRAM NX Eagle, 12-speed

Cassette: Sram XG-1275, 12-speed, 10-52t



ACCESSORIES

SWAT: SWAT CC steerer tube integrated tool with chain tool and link



BRAKES

Rear Brake: SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm

Front Brake: SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm



* Weights based on pre-production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

 S1S2S3S4S5S6
Crank Length165mm165mm170mm170mm170mm175mm
Handlebar Width780mm780mm780mm780mm780mm780mm
Stem Length40mm40mm40mm40mm50mm50mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length100mm125mm150mm170mm170mm190mm
Stack609mm617mm626mm635mm645mm654mm
Reach405mm425mm445mm470mm495mm525mm
Head-Tube Length95mm100mm110mm120mm130mm140mm
Head-Tube Angle64.6°64.6°64.6°64.6°64.6°64.6°
B-B Height343mm348mm348mm348mm348mm348mm
B-B Drop-34mm-29mm-29mm-29mm-29mm-29mm
Trail132mm132mm132mm132mm132mm132mm
Fork Length, Full560mm570mm570mm570mm570mm570mm
Fork Rake/Offset42mm42mm42mm42mm42mm42mm
Front-Center726mm752mm776mm806mm835mm869mm
Chain-Stay Length433mm432mm432mm432mm432mm432mm
Wheelbase1158mm1184mm1208mm1238mm1267mm1301mm
Top Tube Length, Horizontal560mm582mm604mm631mm659mm691mm
Bike Stand-Over Height727mm763mm766mm767mm773mm778mm
Seat-Tube Length385mm385mm405mm425mm445mm465mm
Seat-Tube Angle75.8°75.8°75.8°75.8°75.8°75.8°

Size Guide
